Eco Flex

The Eco Flex range offers high-efficiency LED light engines for diverse interior and exterior applications. Available in IP20, IP54, and IP67, each with a range of chip counts and wattages, Eco Flex delivers superior flexibility for project customisation. The range includes Single Colour and Dynamic White options, alongside the unique Solo variant with individual LED cutting intervals, enabling greater design freedom.

Colour Temperature
Lumens
206
lm/m
2880
lm/m

Wattage
LED Per Metre
80
LED/m
240
LED/m

Cutting Intervals
IP Rating
Show Filters

Filters

Colour Temperature
Lumens
206
lm/m
2880
lm/m

LED Per Metre
80
LED/m
240
LED/m

Wattage
IP Rating
  • Eco Flex 80 IP20

  • View Drawing

    Eco Flex 80 IP20

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm
  • Eco Flex 80 IP54

  • View Drawing

    Eco Flex 80 IP54

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm

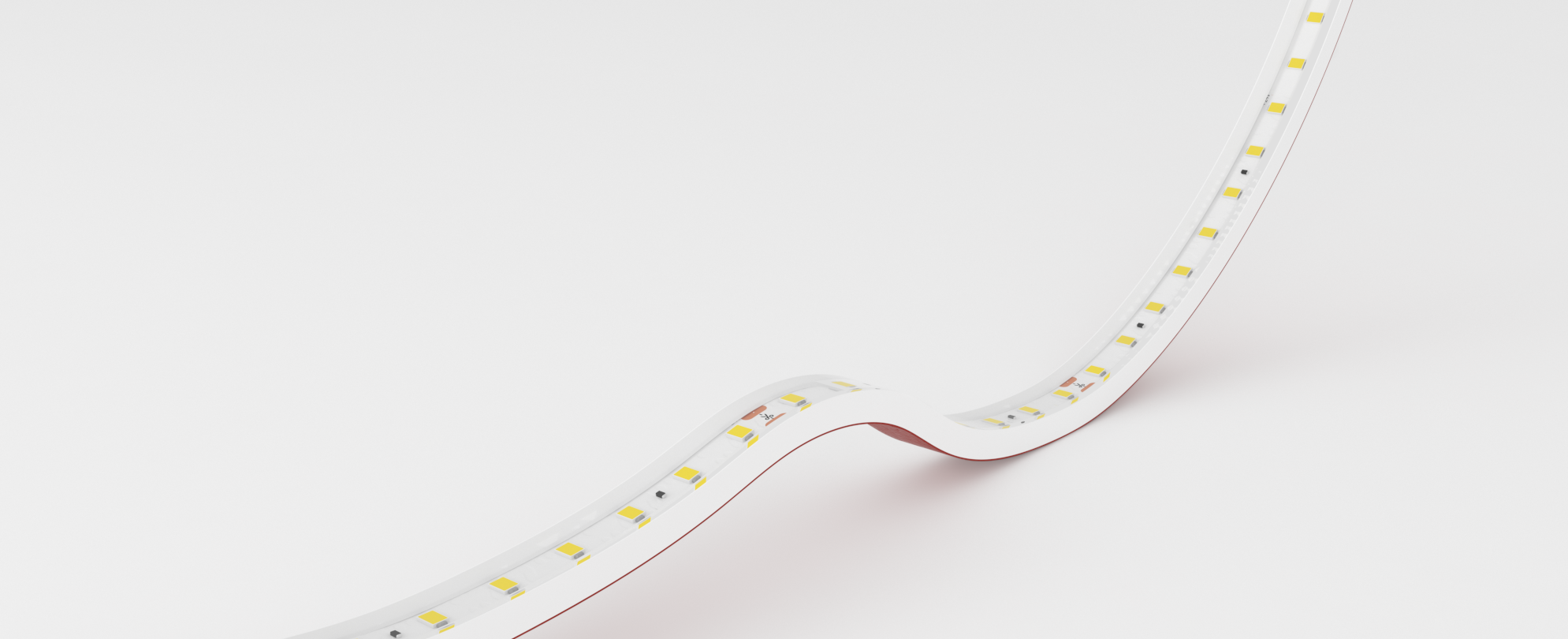

  • Eco Flex 80 IP67

  • View Drawing

    Eco Flex 80 IP67

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 100 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 12.5 mm
    Max Power Length 7000 mm
  • Eco Flex 160 IP20

  • View Drawing

    Eco Flex 160 IP20

    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
  • Eco Flex 160 IP54

  • View Drawing

    Eco Flex 160 IP54

    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm

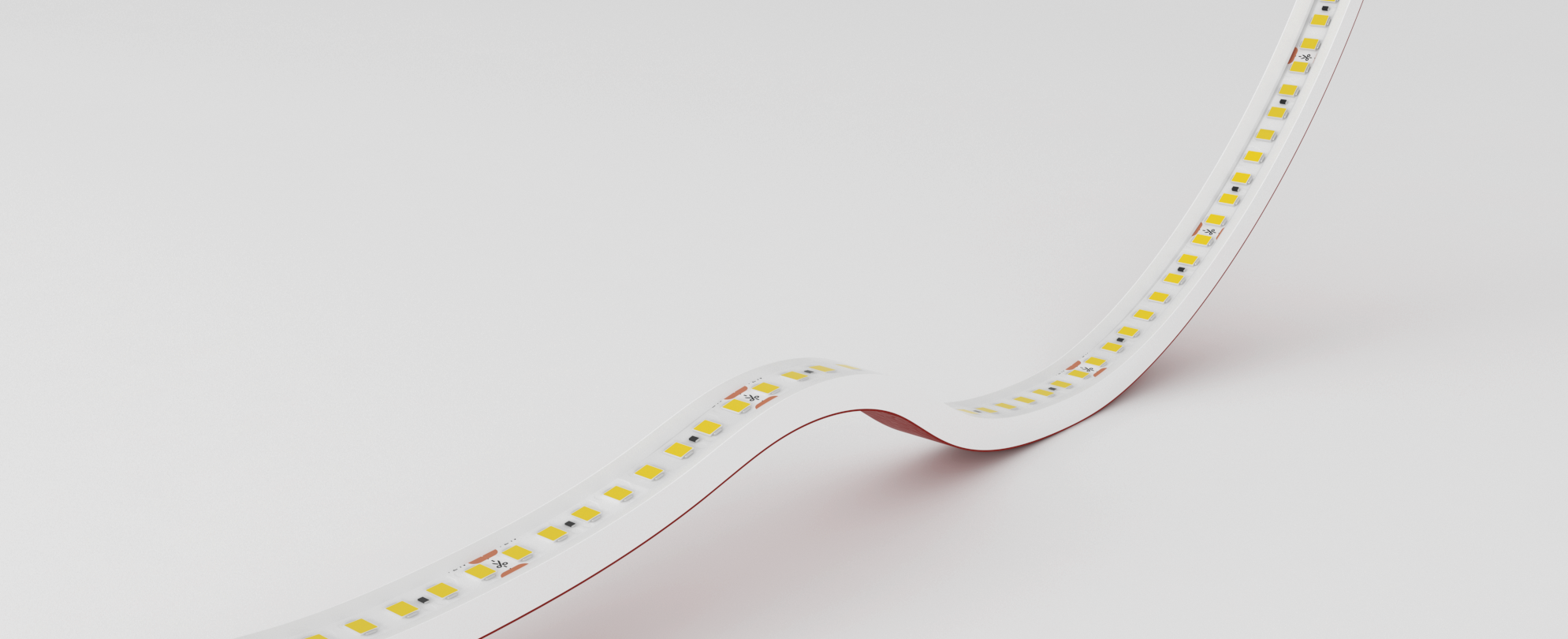

  • Eco Flex 160 IP67

  • View Drawing

    Eco Flex 160 IP67

    Power Consumption 2.4 | 4.8 | 9.6 | 14.4 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 | 14.4 W/m
    Cutting Intervals 50 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
  • Eco Flex 240 IP20

  • View Drawing

    Eco Flex 240 IP20

    Power Consumption 2.4 > 24 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm
    View product
    Power Consumption 2.4 > 24 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm
  • Eco Flex 240 IP54

  • View Drawing

    Eco Flex 240 IP54

    Power Consumption 2.4 > 24 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm
    View product
    Power Consumption 2.4 > 24 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm

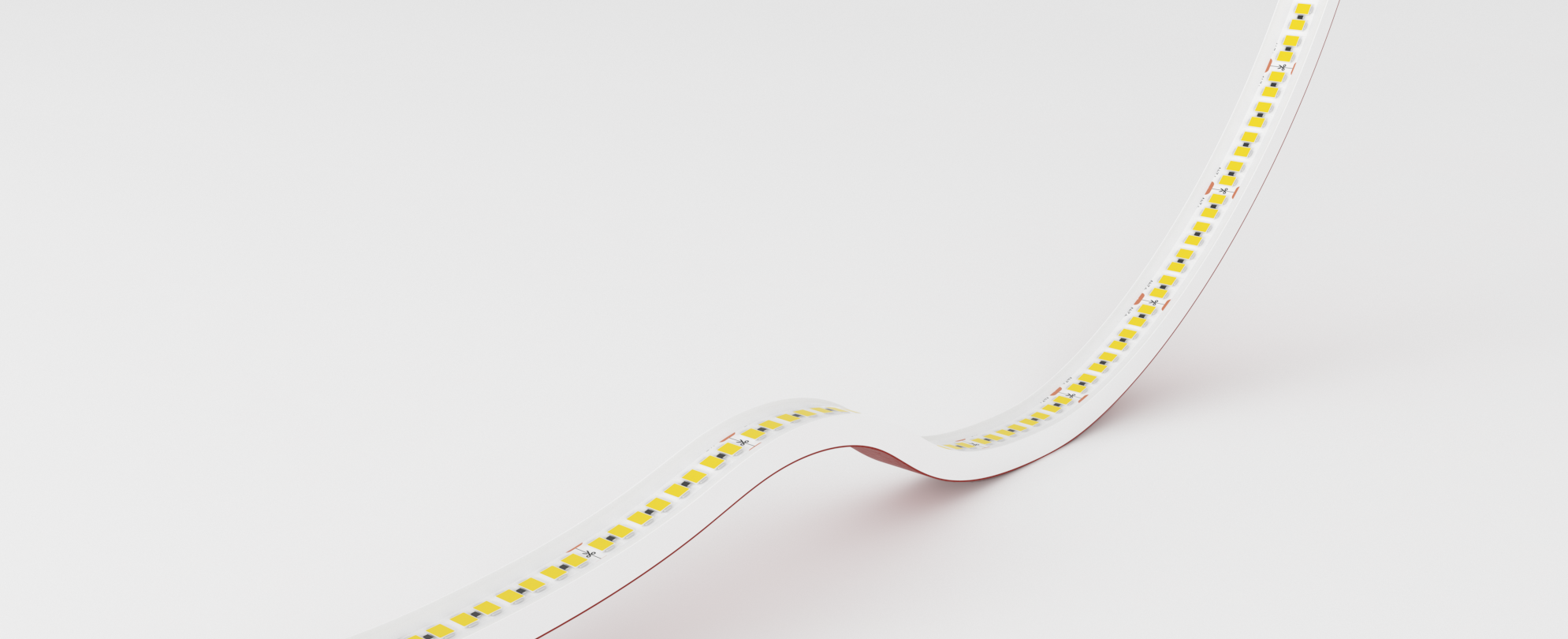

  • Eco Flex 240 IP67

  • View Drawing

    Eco Flex 240 IP67

    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm
    View product
    Power Consumption 2.4 > 19.2 W/m
    Cutting Intervals 33.33 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 4.16 mm
    Max Power Length 8000 mm
  • Eco Flex Solo 160 IP20

  • View Drawing

    Eco Flex Solo 160 IP20

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
  • Eco Flex Solo 160 IP54

  • View Drawing

    Eco Flex Solo 160 IP54

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm

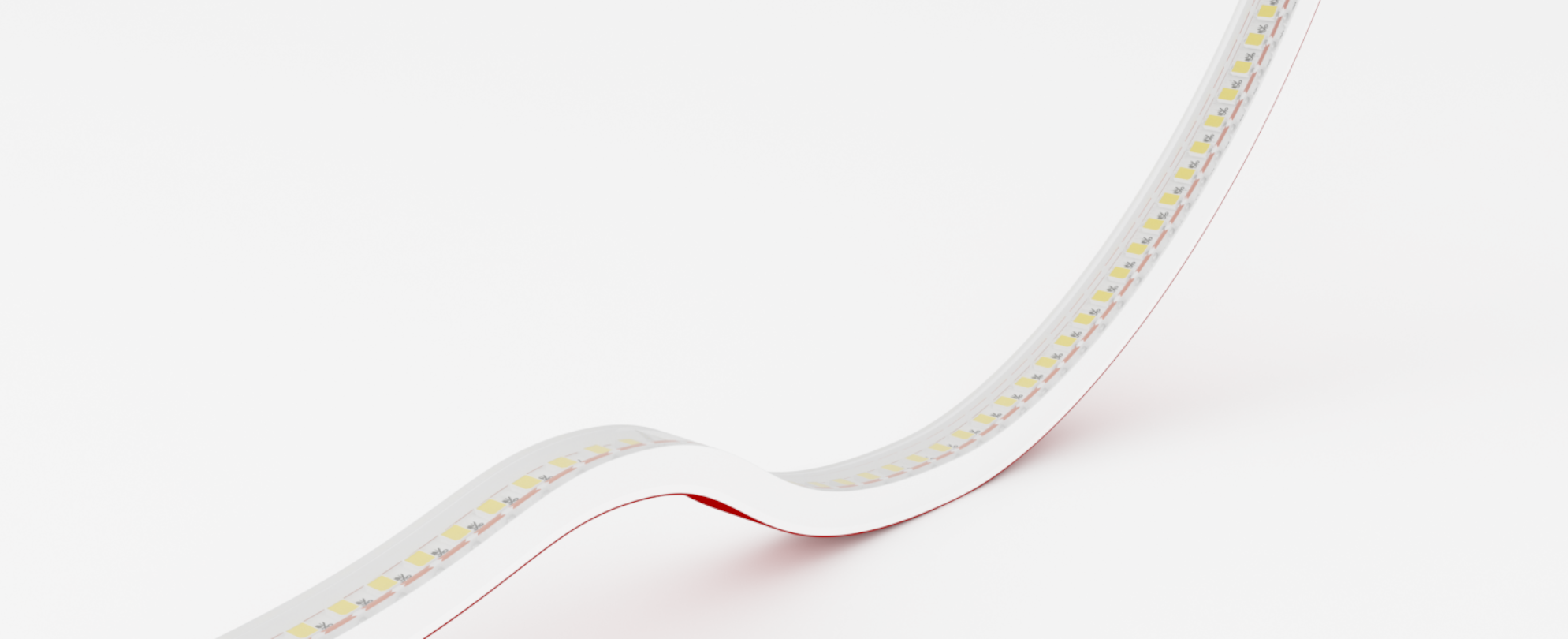

  • Eco Flex Solo 160 IP67

  • View Drawing

    Eco Flex Solo 160 IP67

    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 2.4 | 4.8 | 9.6 W/m
    Cutting Intervals 6.25 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 6.25 mm
    Max Power Length 7000 mm
  • Eco Flex Dynamic White 240 IP20

  • View Drawing

    Eco Flex Dynamic White 240 IP20

    Power Consumption 4.8 > 24 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 4.8 > 24 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
  • Eco Flex Dynamic White 240 IP54

  • View Drawing

    Eco Flex Dynamic White 240 IP54

    Power Consumption 4.8 > 24 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 4.8 > 24 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
  • Eco Flex Dynamic White 240 IP67

  • View Drawing

    Eco Flex Dynamic White 240 IP67

    Power Consumption 4.8 | 9.6 | 14.4 | 19.2 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
    View product
    Power Consumption 4.8 | 9.6 | 14.4 | 19.2 W/m
    Cutting Intervals 66.7 mm
    Voltage 24 V DC
    Beam Angle 120 °
    LED Pitch 8.1 mm
    Max Power Length 7000 mm
