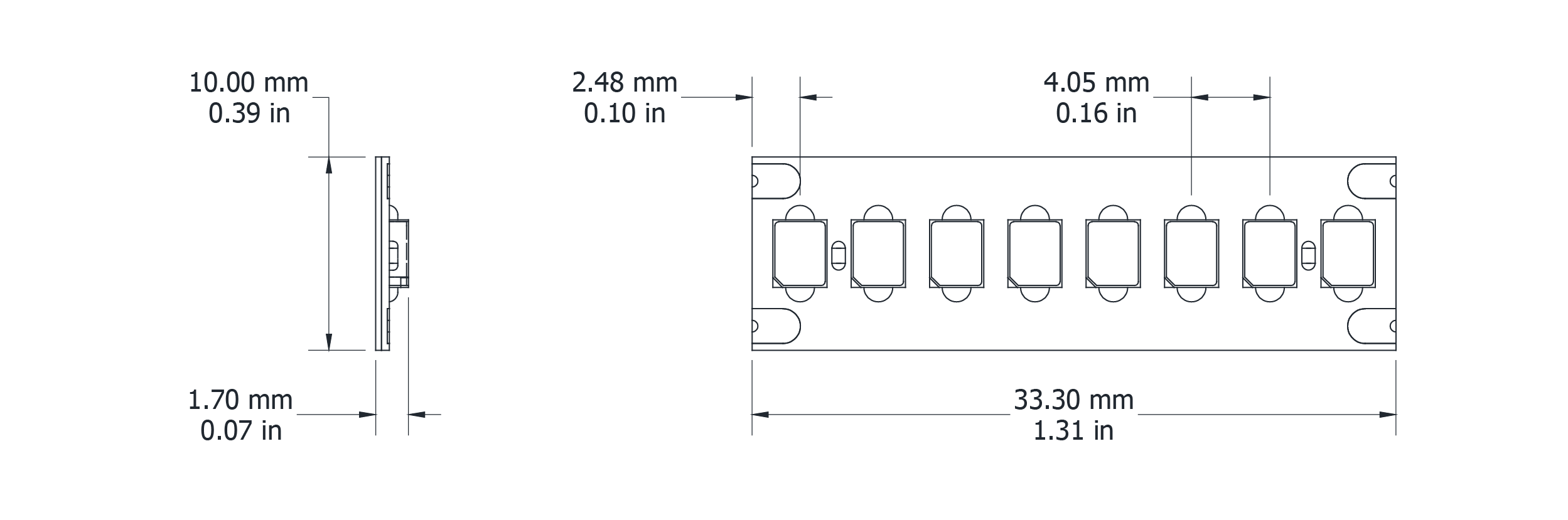

Drawing Image for Eco Flex 240 IP20

Eco Flex 240 IP20

The Eco Flex range features high-efficiency LED light engines engineered for a broad spectrum of interior and exterior applications. Available in IP20, IP54, and IP67, Eco Flex offers a wide selection of chip counts and wattages. Eco Flex delivers superior flexibility for project customisation. The range includes Single Colour, Dynamic White, and Dim-to-Warm options, alongside specialist variants designed to expand design flexibility, including Solo, with individual LED cutting intervals for finer detailing, Long Run for extended continuous lengths through a single feed, and Eco Line, an eco-conscious variant developed to support more sustainable specification.

Power Consumption

2.4 > 24 W/m

Cutting Intervals

33.33 mm

Voltage

24 V DC

Beam Angle

120 °

LED Pitch

4.16 mm

Max Power Length

12000 mm

Product Options

Show Filters
Filter

Compatible Accessories

Flex Profiles
Flex Profile Recessed 2309
  • Flex Profile Recessed 2309

  • View Drawing
    Flex Profile Recessed 2309

    Flex Profile Recessed 2309

    Dimensions 23.1 mm x 8.5 mm
    Max Flex Width 10 mm
    Colour Grey
    Pitch For Diffusion 240 LED/m
    View product
    Flex Profile Surface 1709
  • Flex Profile Surface 1709

  • View Drawing
    Flex Profile Surface 1709

    Flex Profile Surface 1709

    Dimensions 17 mm x 8.6 mm
    Max Flex Width 12 mm
    Colour Grey
    Pitch For Diffusion 240 LED/m
    View product
    Flex Profile Surface Corner 1616
  • Flex Profile Surface Corner 1616

  • View Drawing
    Flex Profile Surface Corner 1616

    Flex Profile Surface Corner 1616

    Dimensions 16 mm x 16 mm
    Max Flex Width 10 mm
    Colour Grey
    Pitch For Diffusion 80 LED/m
    View product
    Flex Profile Surface Corner 1617
  • Flex Profile Surface Corner 1617

  • View Drawing
    Flex Profile Surface Corner 1617

    Flex Profile Surface Corner 1617

    Dimensions 16 mm x 16 mm
    Max Flex Width 10 mm
    Colour Grey
    Pitch For Diffusion 160 LED/m
    View product
    Flex Profile Surface D20
  • Flex Profile Surface D20

  • View Drawing
    Flex Profile Surface D20

    Flex Profile Surface D20

    Dimensions 21 mm x 21 mm
    Max Flex Width 10 mm
    Colour Grey
    Pitch For Diffusion 160 LED/m
    View product
    Flex Profile Surface 1806
  • Flex Profile Surface 1806

  • View Drawing
    Flex Profile Surface 1806

    Flex Profile Surface 1806

    Dimensions 18 mm x 5.54 mm
    Max Flex Width 14 mm
    Colour Grey
    Pitch For Diffusion 480 LED/m
    View product
    Flex Profile Recessed 3628
  • Flex Profile Recessed 3628

  • View Drawing
    Flex Profile Recessed 3628

    Flex Profile Recessed 3628

    Dimensions 36 mm x 28 mm
    Max Flex Width 18 mm
    Colour Grey
    Pitch For Diffusion 80 LED/m
    View product
    Flex Profile Surface D40
  • Flex Profile Surface D40

  • View Drawing
    Flex Profile Surface D40

    Flex Profile Surface D40

    Dimensions 43.6 mm x 11.15 mm
    Max Flex Width 18 mm
    Colour Grey
    Pitch For Diffusion 80 LED/m
    View product
