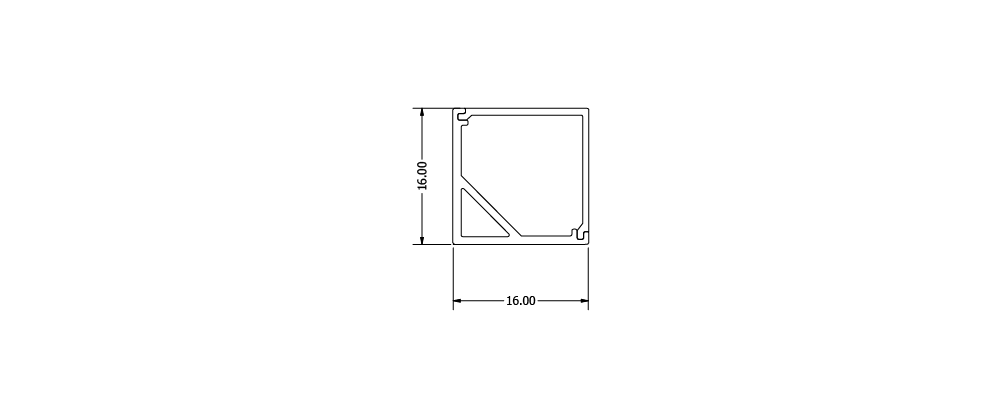

Pro Profile 0509 GREY

Dimensions

16 mm x 16 mm

Max Flex Width

10 mm

Colour

GREY

Pitch For Diffusion

180 LED/m

Product Options

Compatible Accessories

Eco Flex

Eco Flex 80 IP20

View Drawing

Eco Flex 80 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	7000 mm

View product

Eco Flex 80 IP54

View Drawing

Eco Flex 80 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	7000 mm

View product

Eco Flex 160 IP20

View Drawing

Eco Flex 160 IP20

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Eco Flex 160 IP54

View Drawing

Eco Flex 160 IP54

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Eco Flex 240 IP20

View Drawing

Eco Flex 240 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

View product

Eco Flex 240 IP54

View Drawing

Eco Flex 240 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

View product

Eco Flex Solo 160 IP20

View Drawing

Eco Flex Solo 160 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Eco Flex Solo 160 IP54

View Drawing

Eco Flex Solo 160 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Eco Flex Dynamic White 240 IP20

View Drawing

Eco Flex Dynamic White 240 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	7000 mm

View product

Eco Flex Dynamic White 240 IP54

View Drawing

Eco Flex Dynamic White 240 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	7000 mm

View product

Lumen Line

Lumen Line Solo 160 IP20

View Drawing

Lumen Line Solo 160 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

View product

Lumen Line Solo 160 IP54

View Drawing

Lumen Line Solo 160 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

View product

Lumen Line 80 IP20

View Drawing

Lumen Line 80 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Lumen Line 80 IP54

View Drawing

Lumen Line 80 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Lumen Line 160 IP20

View Drawing

Lumen Line 160 IP20

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Lumen Line 160 IP54

View Drawing

Lumen Line 160 IP54

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Lumen Line 240 IP20

View Drawing

Lumen Line 240 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Lumen Line 240 IP54

View Drawing

Lumen Line 240 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Lumen Line Dynamic White 240 IP20

View Drawing

Lumen Line Dynamic White 240 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

View product

Lumen Line Dynamic White 240 IP54

View Drawing

Lumen Line Dynamic White 240 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

View product

Power Flex

Power Flex 80 IP20

View Drawing

Power Flex 80 IP20

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

View product

Power Flex 80 IP54

View Drawing

Power Flex 80 IP54

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

View product

Power Flex 160 IP20

View Drawing

Power Flex 160 IP20

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Flex 160 IP54

View Drawing

Power Flex 160 IP54

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Flex Solo 160 IP20

View Drawing

Power Flex Solo 160 IP20

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Flex Solo 160 IP54

View Drawing

Power Flex Solo 160 IP54

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Flex 240 IP20

View Drawing

Power Flex 240 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

View product

Power Flex 240 IP54

View Drawing

Power Flex 240 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

View product

Power Flex Dynamic White 240 IP20

View Drawing

Power Flex Dynamic White 240 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

View product

Power Flex Dynamic White 240 IP54

View Drawing

Power Flex Dynamic White 240 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

View product

Dynamic Flex

Dynamic Flex Solo Pixel 30 IP20

View Drawing

Dynamic Flex Solo Pixel 30 IP20

Power Consumption	6 \| 7 W/m
Cutting Intervals	33.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	33.33 mm
Max Power Length	4000 mm
Pixels	30 PX/m

View product

Dynamic Flex Solo Pixel 60 IP20

View Drawing

Dynamic Flex Solo Pixel 60 IP20

Power Consumption	12 \| 13.5 W/m
Cutting Intervals	16.66 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	16.66 mm
Max Power Length	3000 mm
Pixels	60 PX/m

View product

Featured Products

Aqua Neon New

Multi Line New

Range Application

Nano Flex

Eco Flex

Lumen Line

Multi Line

Power Flex

Thermo Line

Dynamic Flex

Flex Profiles

Flex Connectors

Range Application

Ultimo Neon

Aqua Neon

ATEX Neon

Thermo Neon

Optico Neon

Neon Profile

Neon Clips

Neon Brackets

Neon Connectors

Range Application

Delta In-Ground

Range Application

Flexi Panel White

Flexi Panel Dual Colour

Flexi Panel Specialist

Range Application

Rigid Grazer Nano

Rigid Grazer Maxi

Range Application

Shelf

Skirt

Cabinet

Joinery Flex

Range Application

Rigid Optico 40

Rigid Optico Brackets

Rigid Optico Louvres

Range Application

Rigid Line Opal

Rigid Line Prism

Rigid Line Concave

Rigid Line Hexagonal

Rigid Line Louvre

Range Application

PSU & Drivers

Cables

Product Archive

Pro Profile 0509 GREY

Dimensions

Max Flex Width

Colour

Pitch For Diffusion

Compatible Accessories

Eco Flex

Eco Flex 80 IP20

Eco Flex 80 IP20

Eco Flex 80 IP54

Eco Flex 80 IP54

Eco Flex 160 IP20

Eco Flex 160 IP20

Eco Flex 160 IP54

Eco Flex 160 IP54

Eco Flex 240 IP20

Eco Flex 240 IP20

Eco Flex 240 IP54

Eco Flex 240 IP54

Eco Flex Solo 160 IP20

Eco Flex Solo 160 IP20

Eco Flex Solo 160 IP54

Eco Flex Solo 160 IP54

Eco Flex Dynamic White 240 IP20

Eco Flex Dynamic White 240 IP20

Eco Flex Dynamic White 240 IP54

Eco Flex Dynamic White 240 IP54

Lumen Line

Lumen Line Solo 160 IP20
