Optico Neon 35 3D

Optico Neon 3D is engineered for uniform, controlled illumination across curved surfaces, supporting precise architectural detailing. With an IP67 rating and durable silicone-encapsulated construction, it is suitable for both interior and exterior applications and is available in 23 mm and 35 mm dimensions. Featuring advanced dual-bending capability and integrated optic lenses in multiple beam angles, it delivers consistent illumination with reduced light spill. The range is offered in Single Colour, Dynamic White, RGB and RGBW, along with pixel options including Single Colour Pixel, Dynamic White Pixel, RGB Pixel and RGBW Pixel. An anti-glare variant enhances visual comfort for interior use, while grey and white body finishes ensure seamless integration across diverse architectural styles.

Power Consumption

24 W/m

Cutting Intervals

250 mm

Voltage

24 V DC

Beam Angle

12 > 25 °

Min Bend Radius

400 mm

Max Power Length

5000 mm

Product Options

Show Filters
Filter

Compatible Accessories

Neon Profile

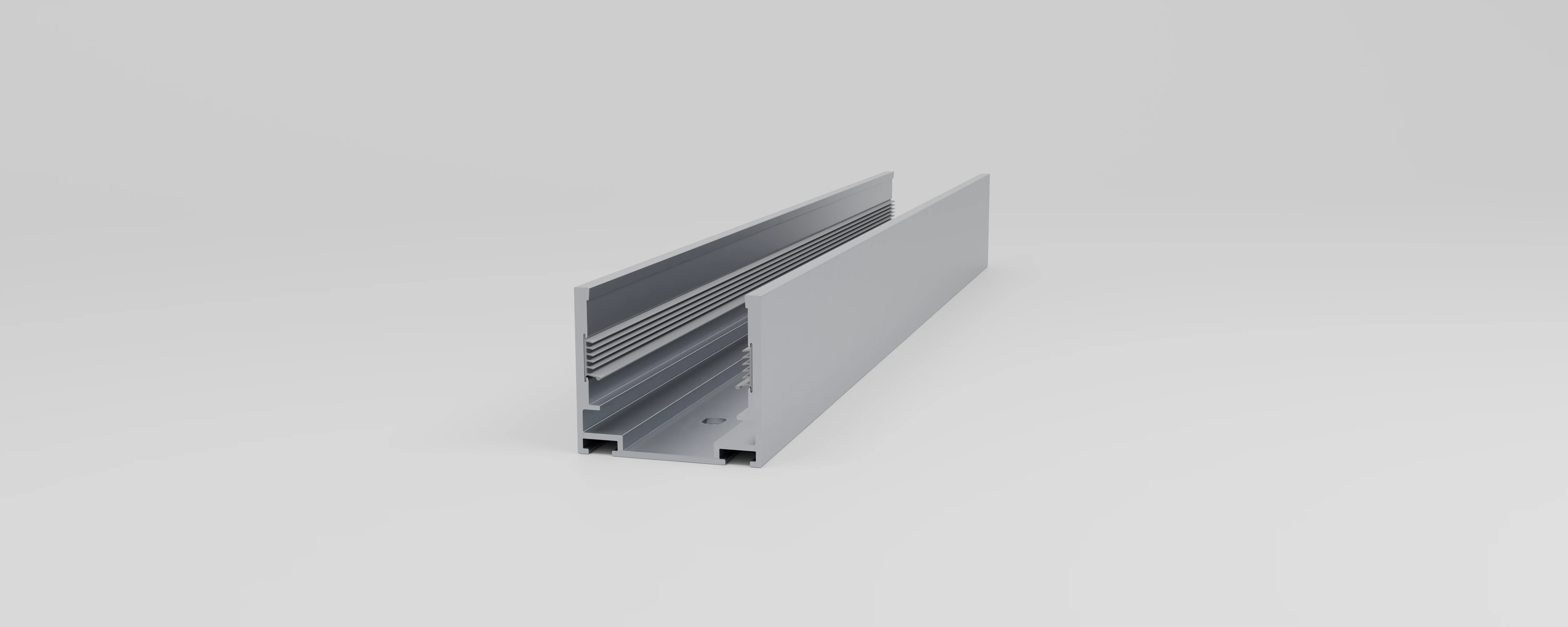

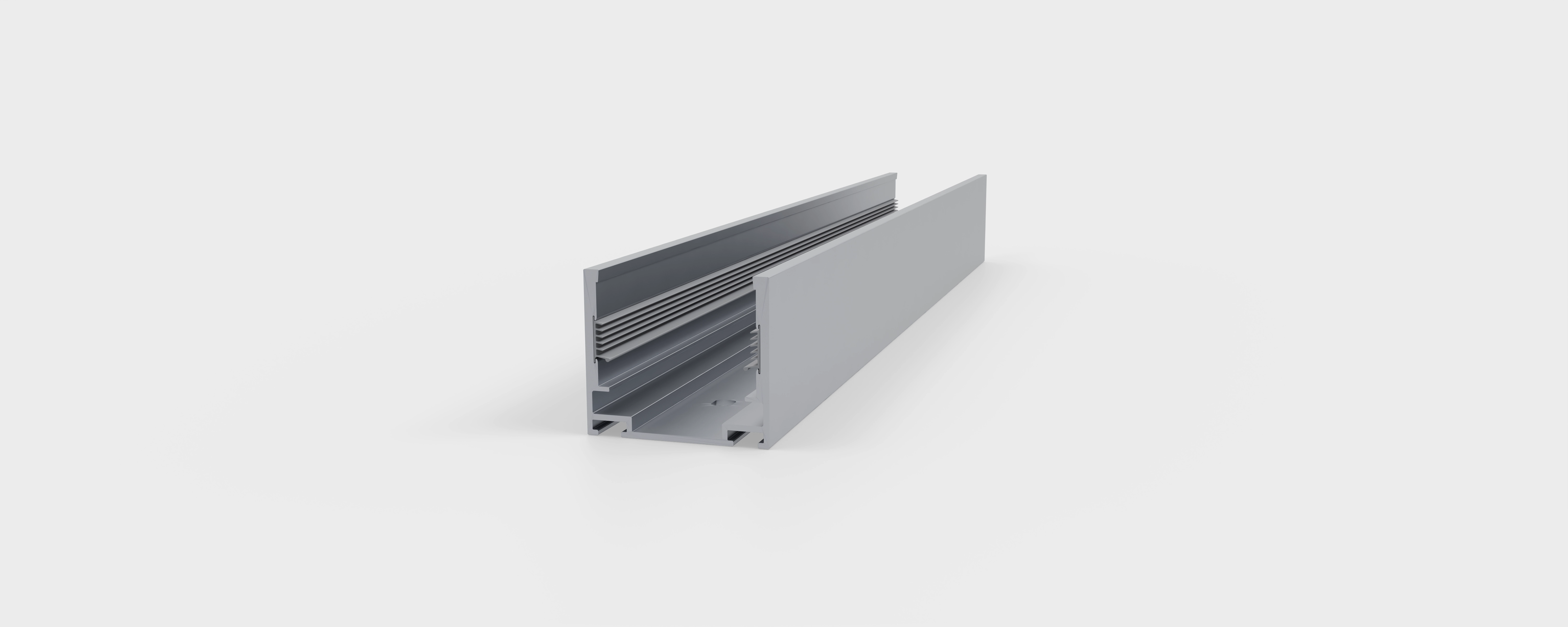

Optico Neon 35 Surface Grip Profile
  • Optico Neon 35 Surface Grip Profile

  • View Drawing
    Optico Neon 35 Surface Grip Profile

    Optico Neon 35 Surface Grip Profile

    Dimensions 41 mm x 36 mm
    Length 500 | 1000 | 2000 mm
    Material Colour Grey
    Material Aluminium
    View product

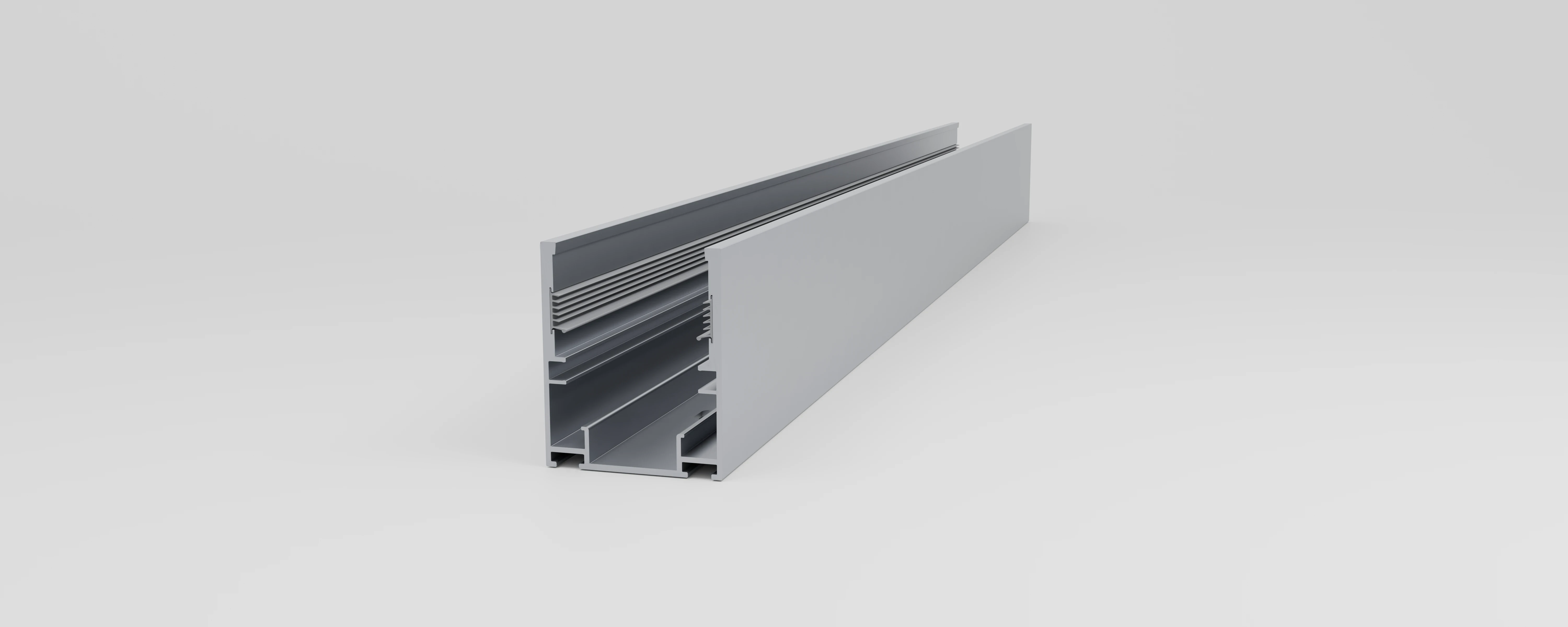

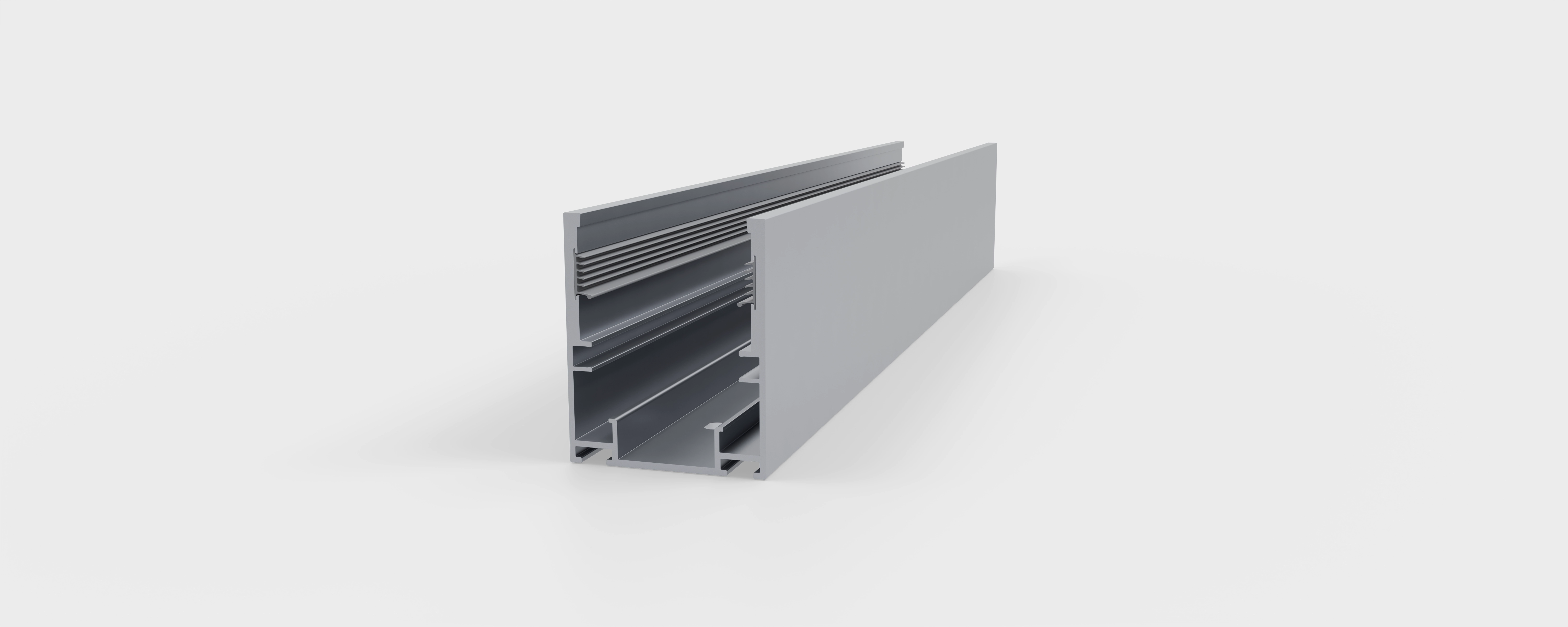

    Optico Neon 35 Wireway Surface Grip Profile
  • Optico Neon 35 Wireway Surface Grip Profile

  • View Drawing
    Optico Neon 35 Wireway Surface Grip Profile

    Optico Neon 35 Wireway Surface Grip Profile

    Dimensions 41 mm x 50 mm
    Length 500 | 1000 | 2000 mm
    Material Colour Grey
    Material Aluminium
    View product

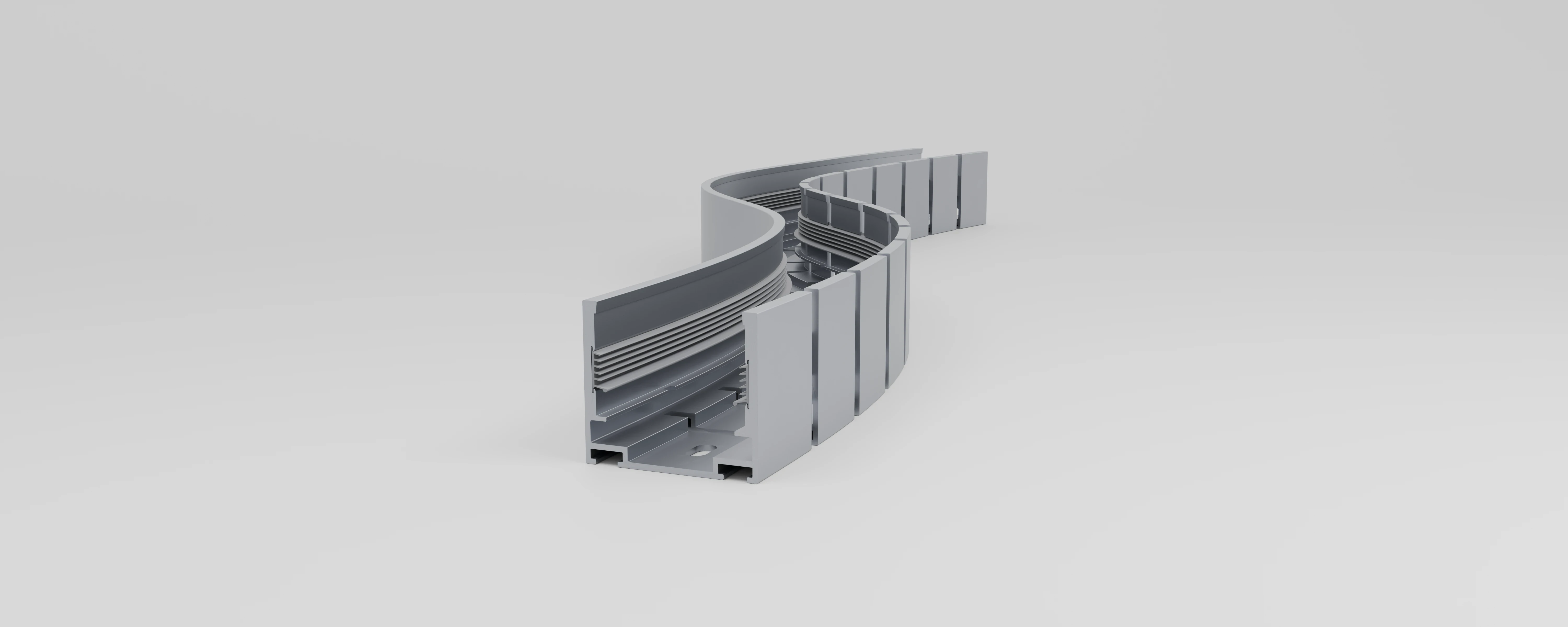

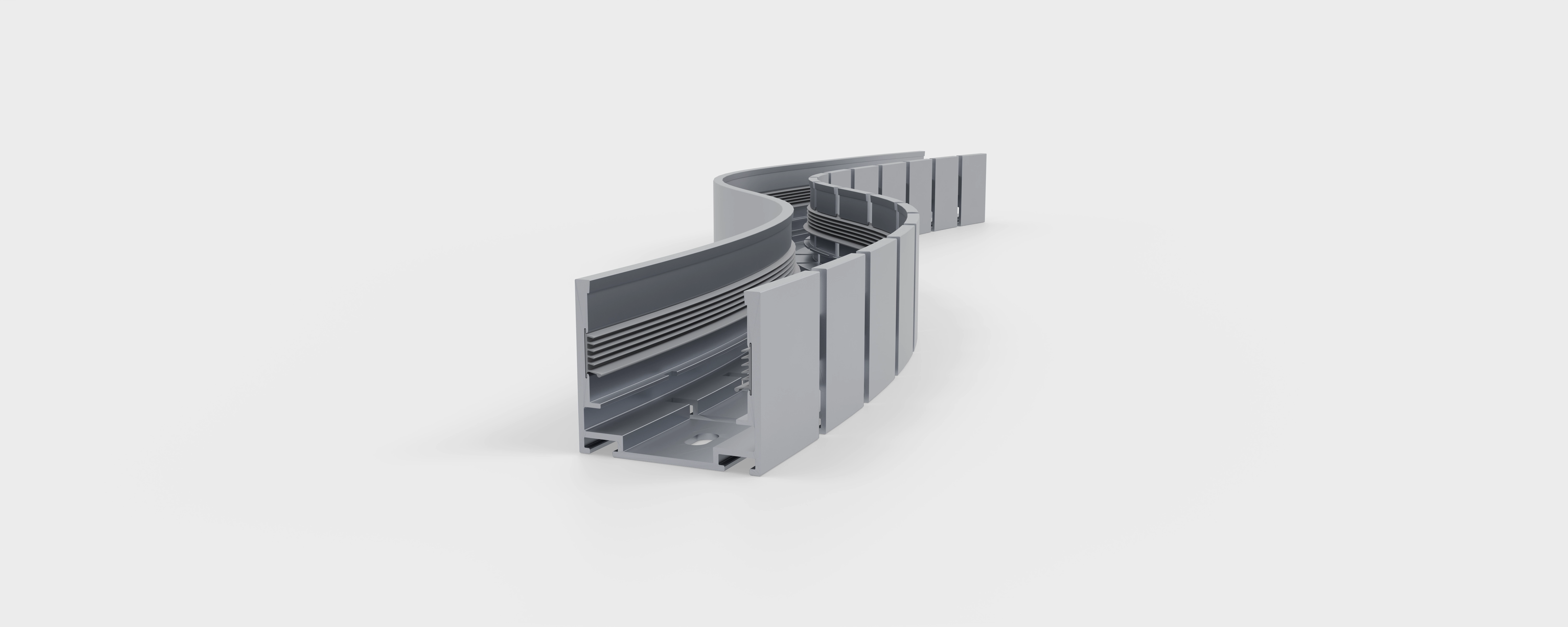

    Optico Neon 35 Flexible SV Grip Profile
  • Optico Neon 35 Flexible SV Grip Profile

  • View Drawing
    Optico Neon 35 Flexible SV Grip Profile

    Optico Neon 35 Flexible SV Grip Profile

    Dimensions 41 mm x 36 mm
    Length 1000 mm
    Material Colour Grey
    Material Aluminium
    View product

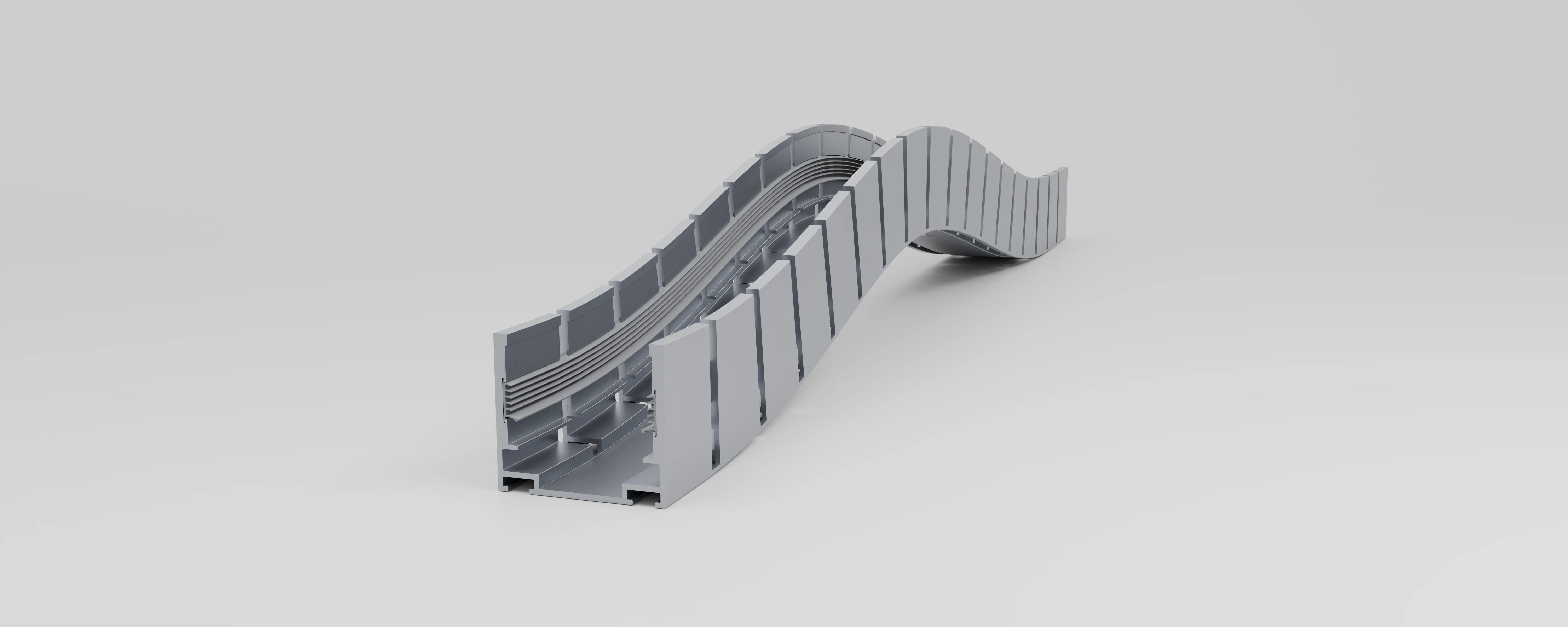

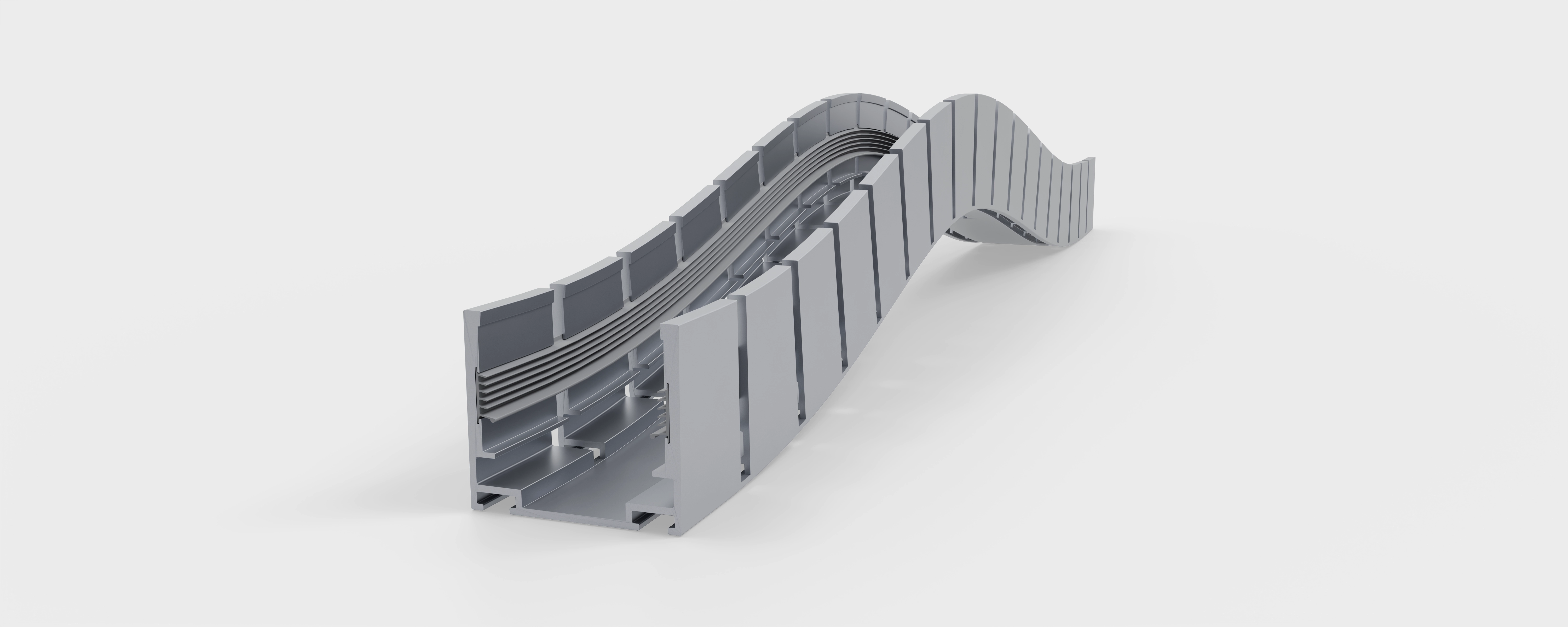

    Optico Neon 35 Flexible TV Grip Profile
  • Optico Neon 35 Flexible TV Grip Profile

  • View Drawing
    Optico Neon 35 Flexible TV Grip Profile

    Optico Neon 35 Flexible TV Grip Profile

    Dimensions 41 mm x 36 mm
    Length 1000 mm
    Material Colour Grey
    Material Aluminium
    View product
    Neon Clip

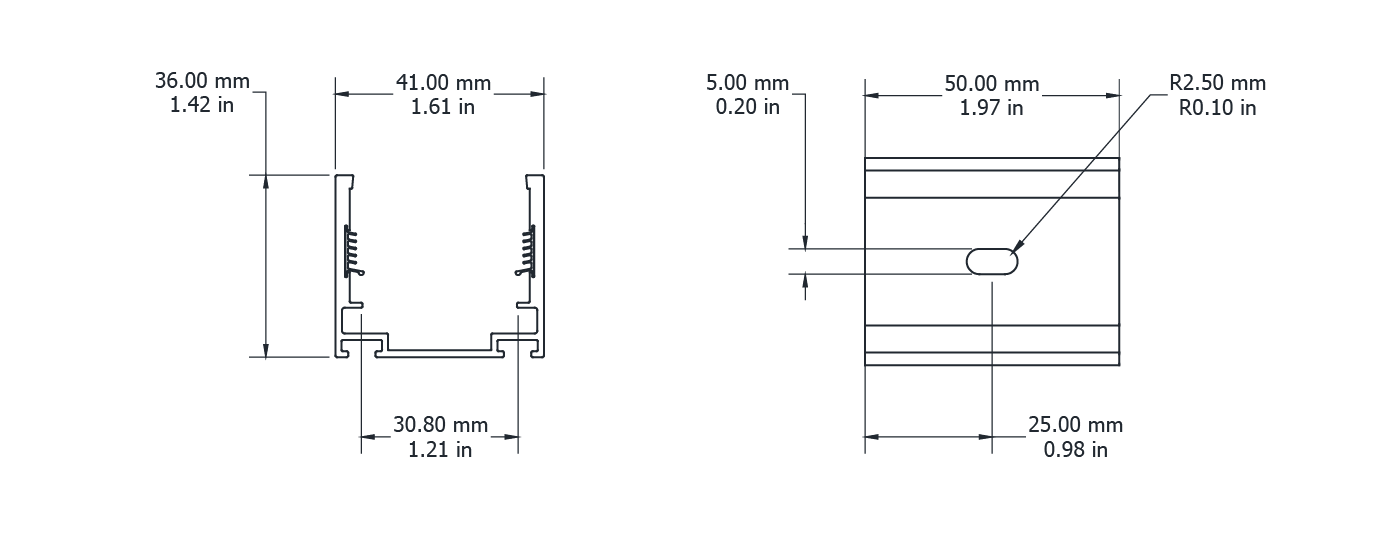

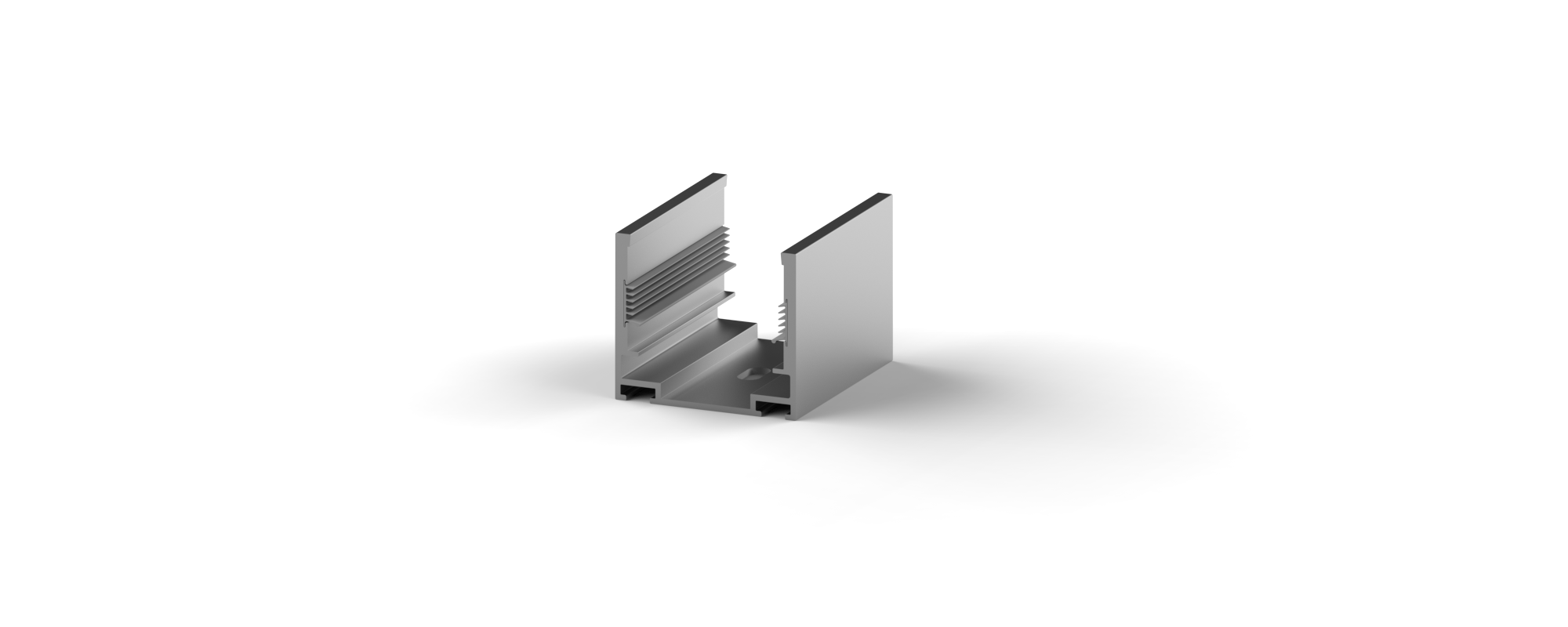

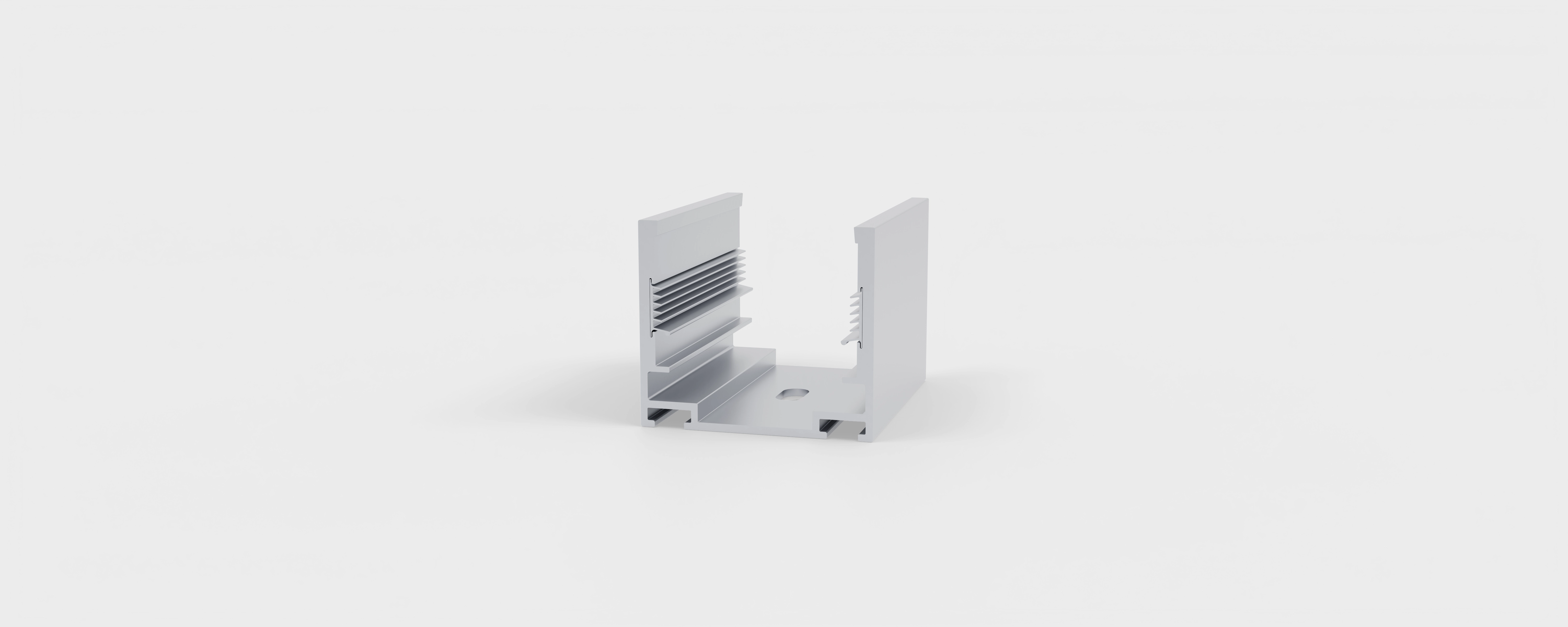

    Optico Neon 35 Surface Grip Clip
  • Optico Neon 35 Surface Grip Clip

  • View Drawing
    Optico Neon 35 Surface Grip Clip

    Optico Neon 35 Surface Grip Clip

    Dimensions 50 mm x 36 mm
    Length 41 mm
    Colour Grey
    Material Aluminium
    View product

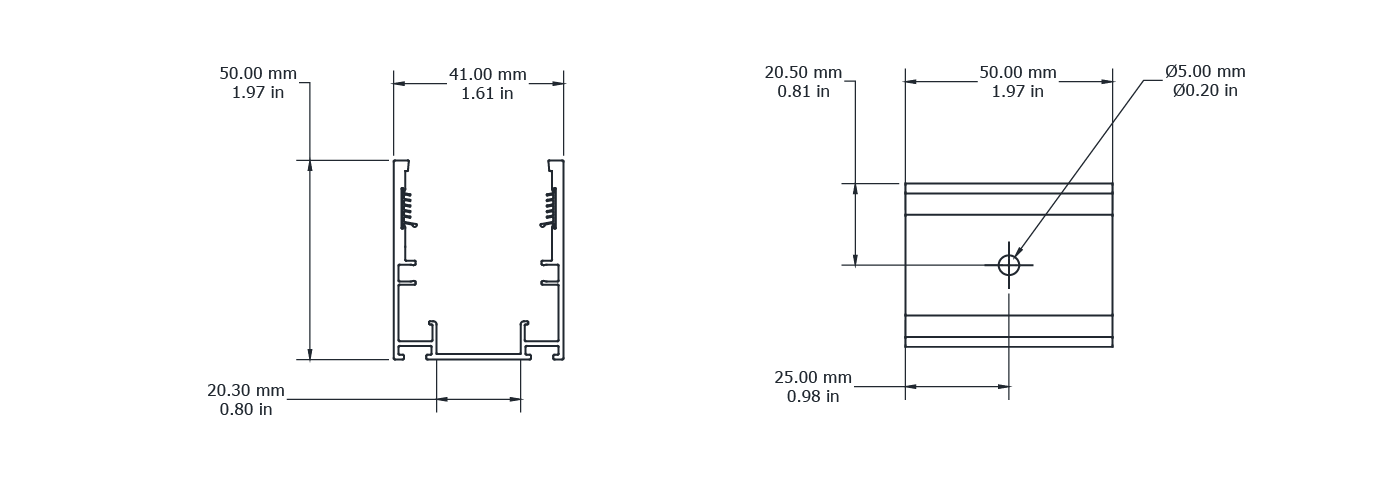

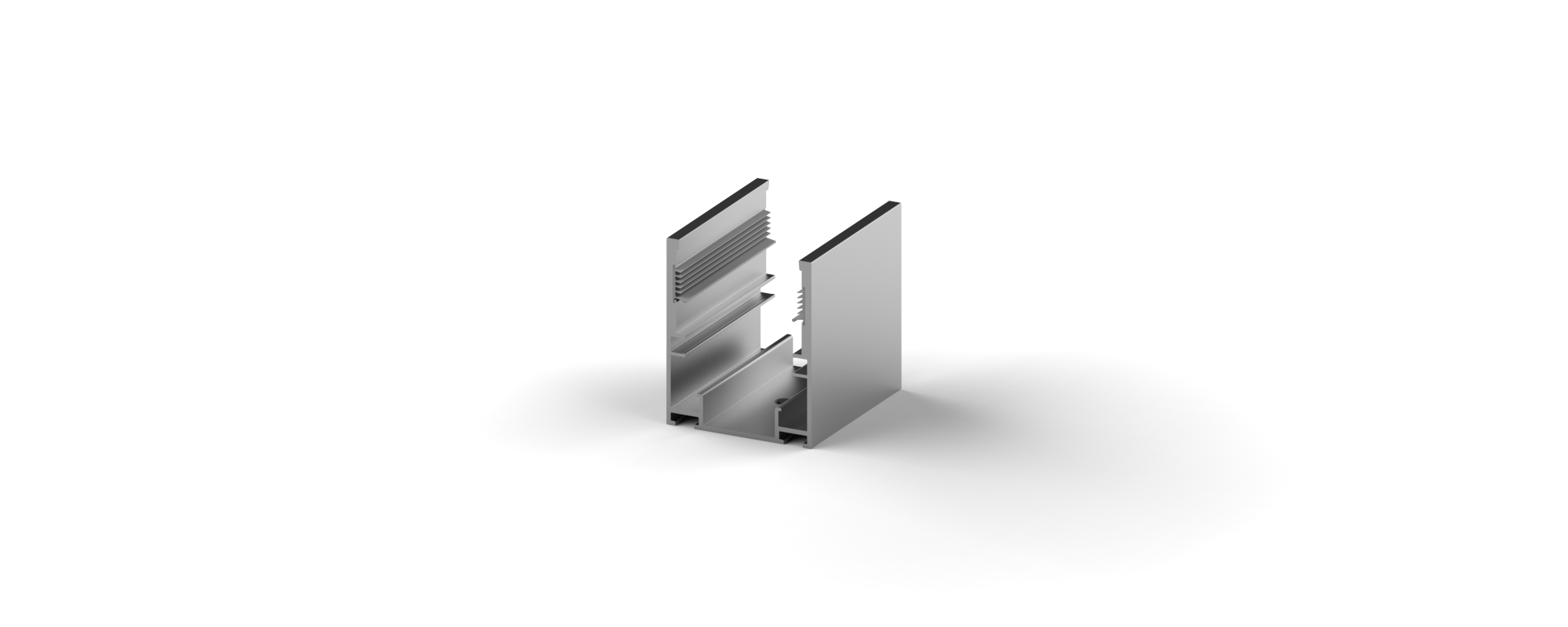

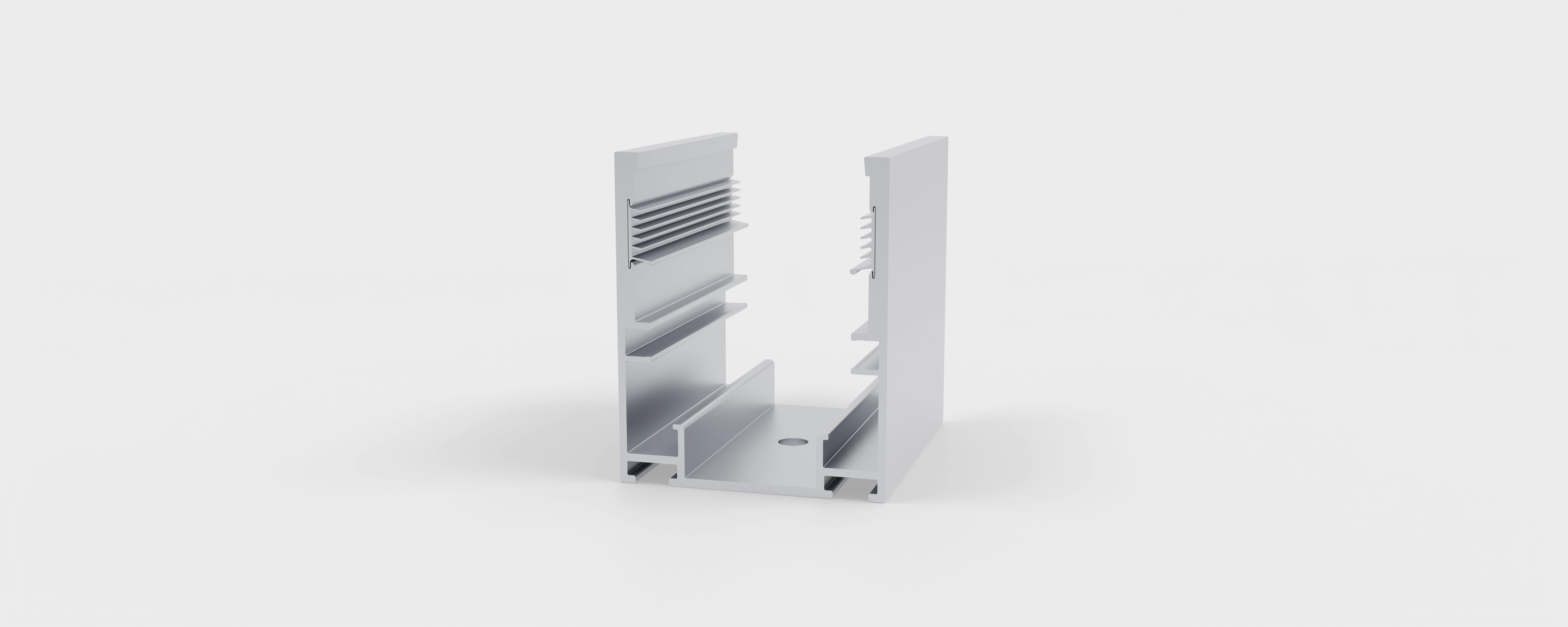

    Optico Neon 35 Wireway Surface Grip Clip
  • Optico Neon 35 Wireway Surface Grip Clip

  • View Drawing
    Optico Neon 35 Wireway Surface Grip Clip

    Optico Neon 35 Wireway Surface Grip Clip

    Dimensions 50 mm x 50 mm
    Length 41 mm
    Colour Grey
    Material Aluminium
    View product
    Neon Brackets

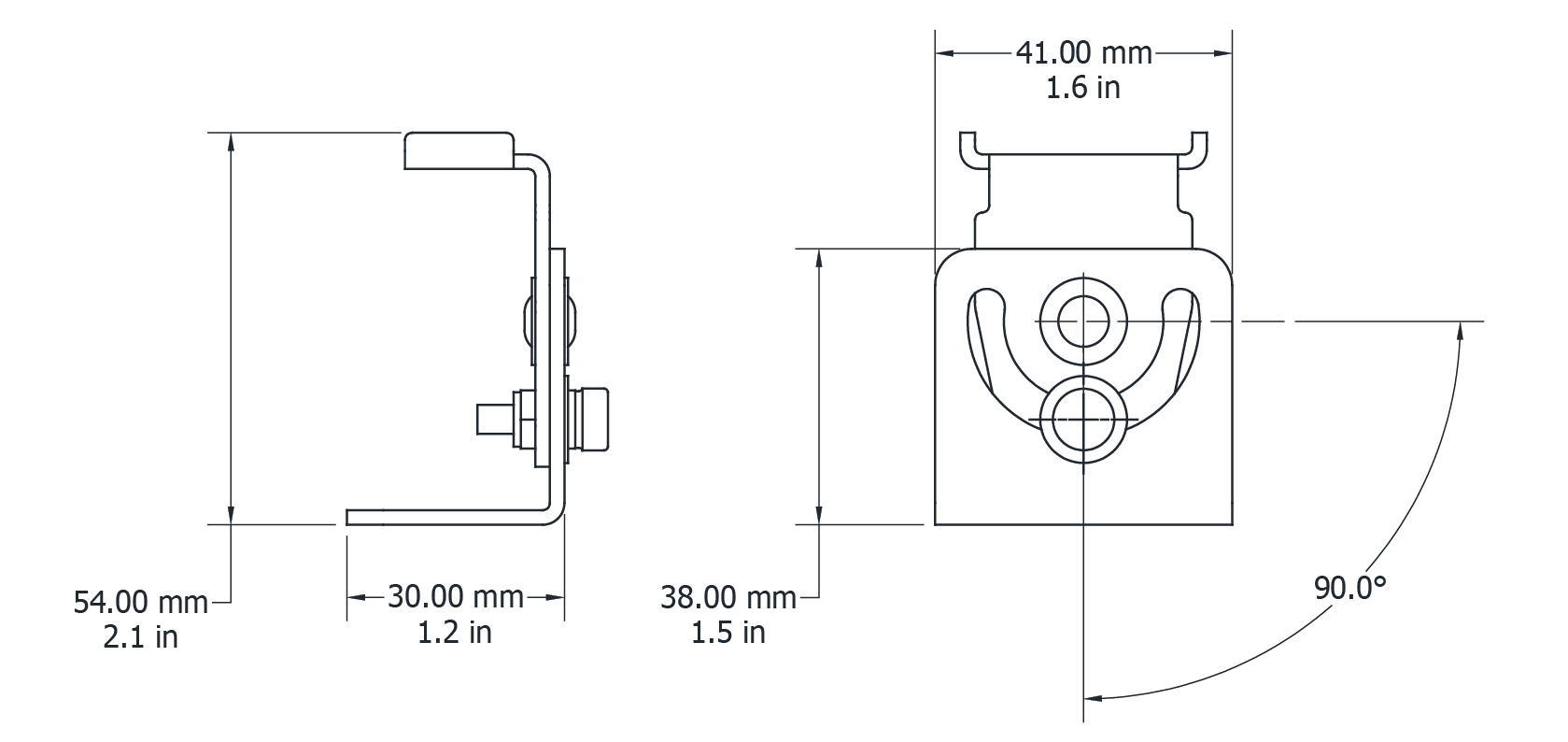

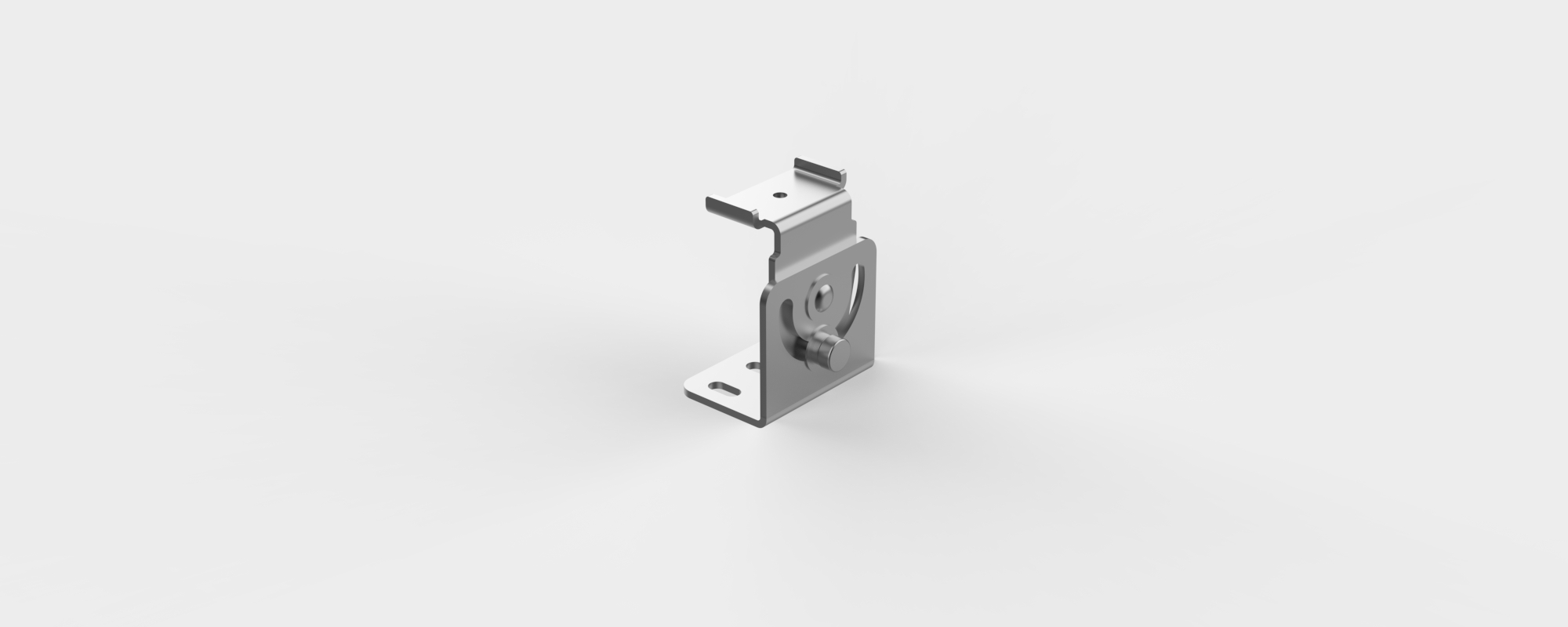

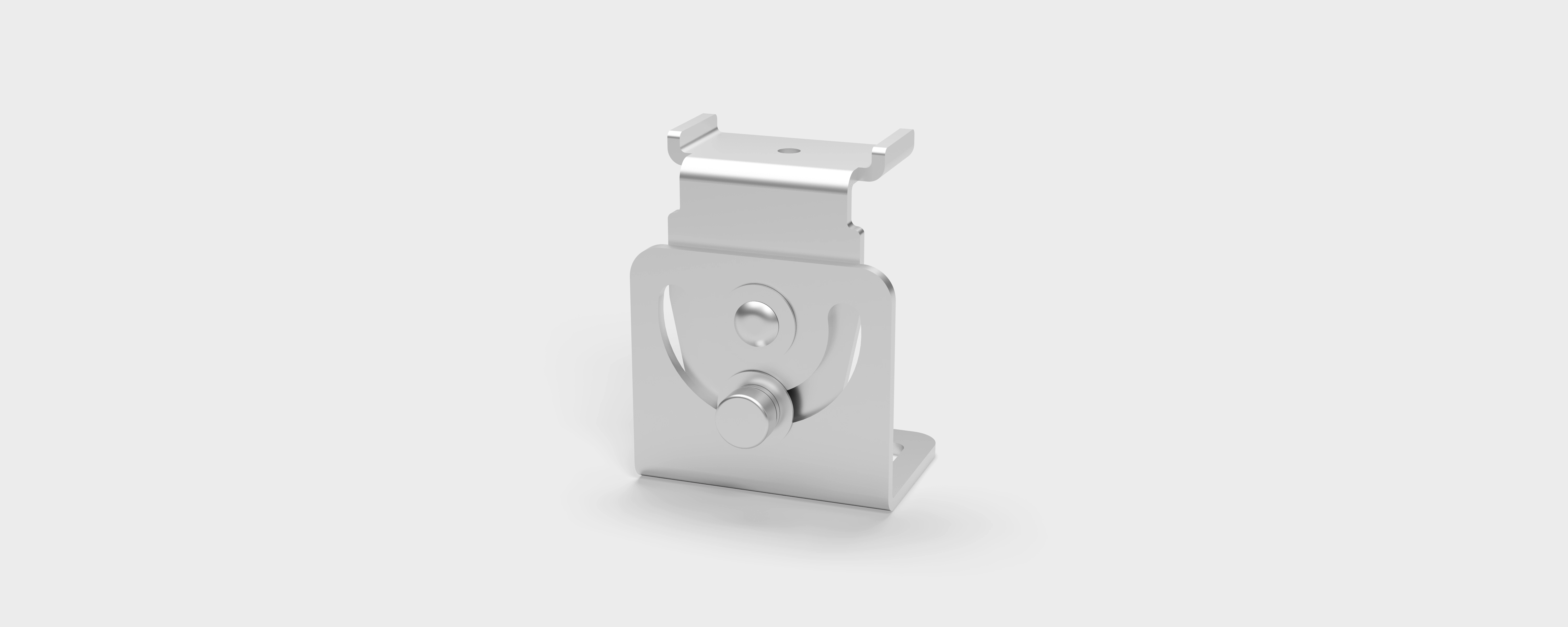

    Optico Neon 35 Adjustable Mounting Bracket
  • Optico Neon 35 Adjustable Mounting Bracket

  • View Drawing
    Optico Neon 35 Adjustable Mounting Bracket

    Optico Neon 35 Adjustable Mounting Bracket

    Dimensions 30 mm x 54 mm
    Length 41 mm
    Colour Grey
    Material Aluminium
    View product
