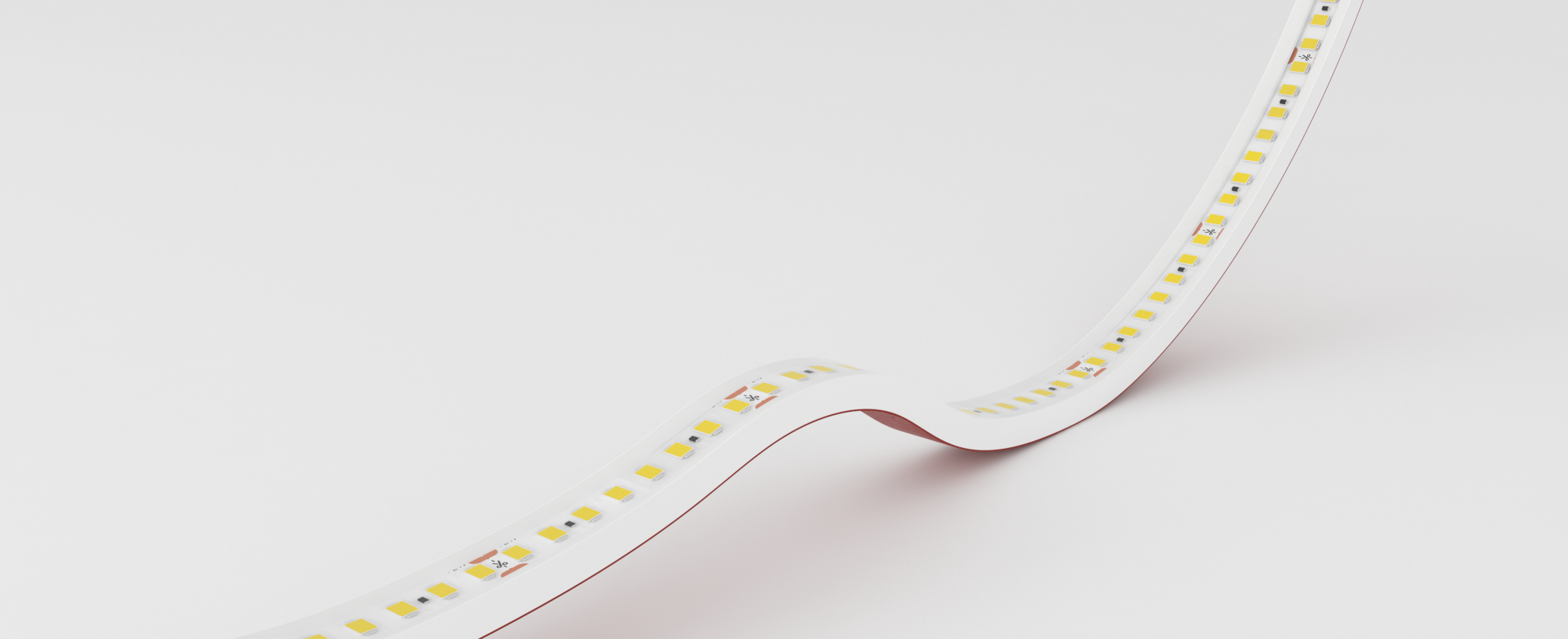

Lumen Line

High CRI LED Light Engines

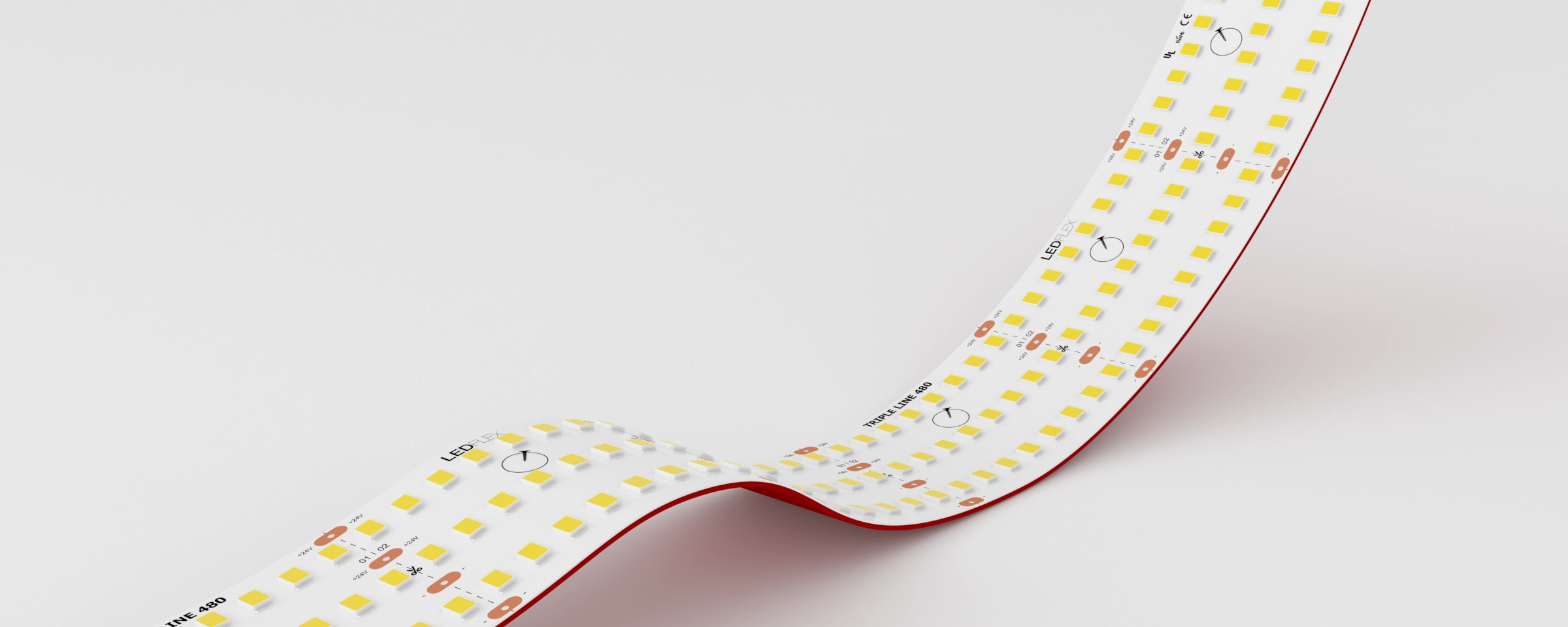

Multi Line

Light Engines with Multiple Lines of LEDs

Power Flex

High-Efficacy and High Output LED Light Engines

Thermo Line

High Temperature LED Light Engines

Dynamic Flex

Colour Changing and Pixel LED Light Engines

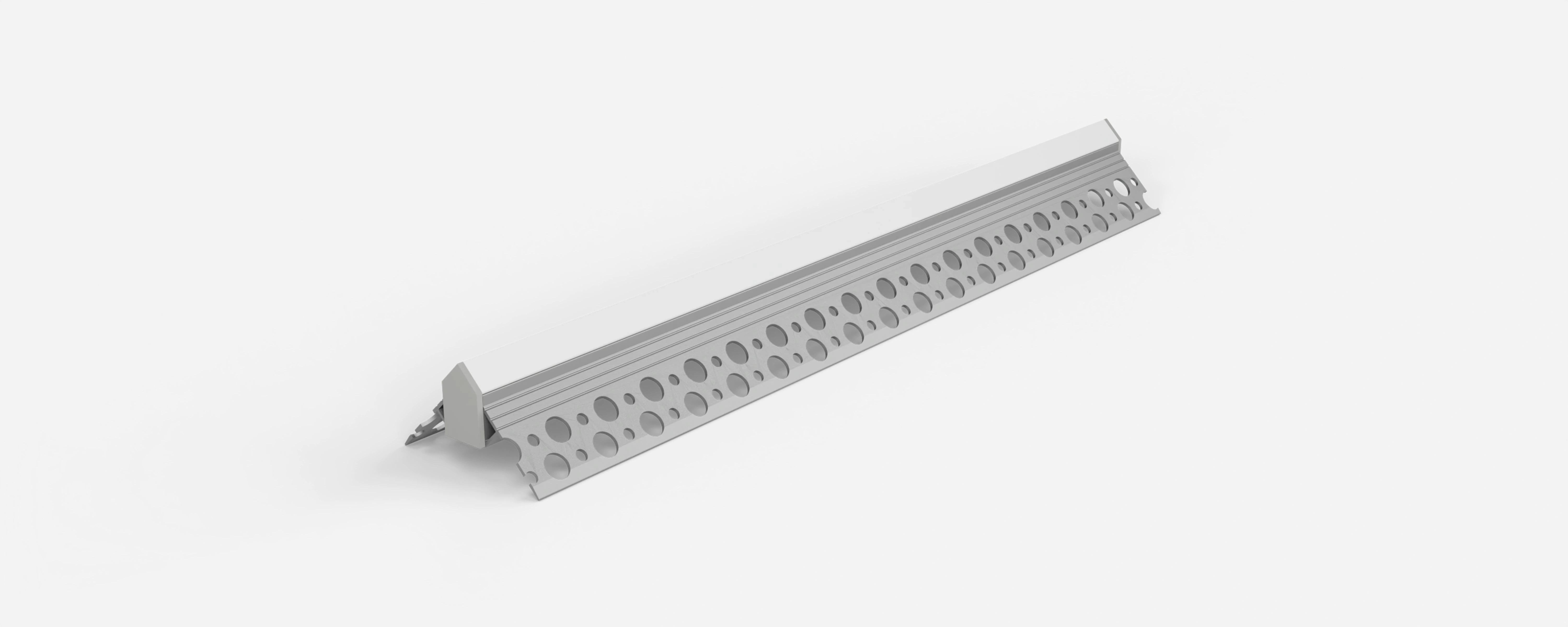

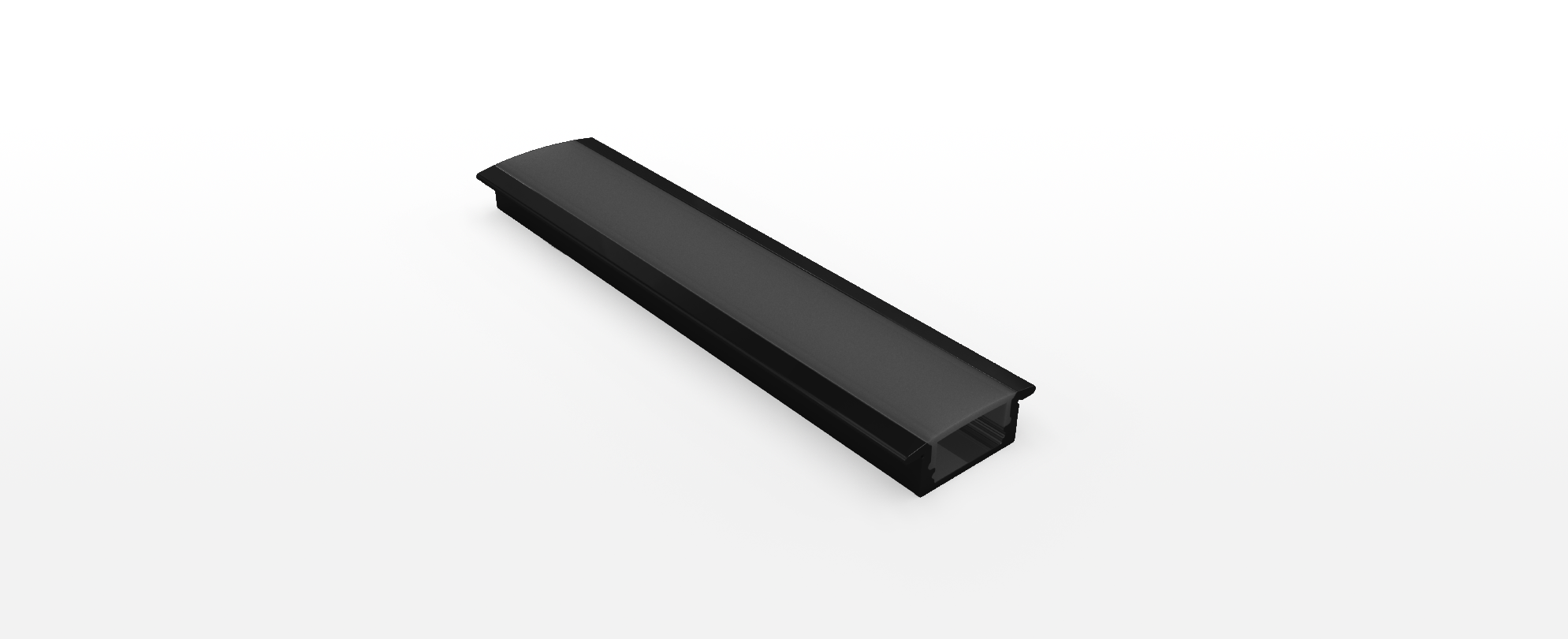

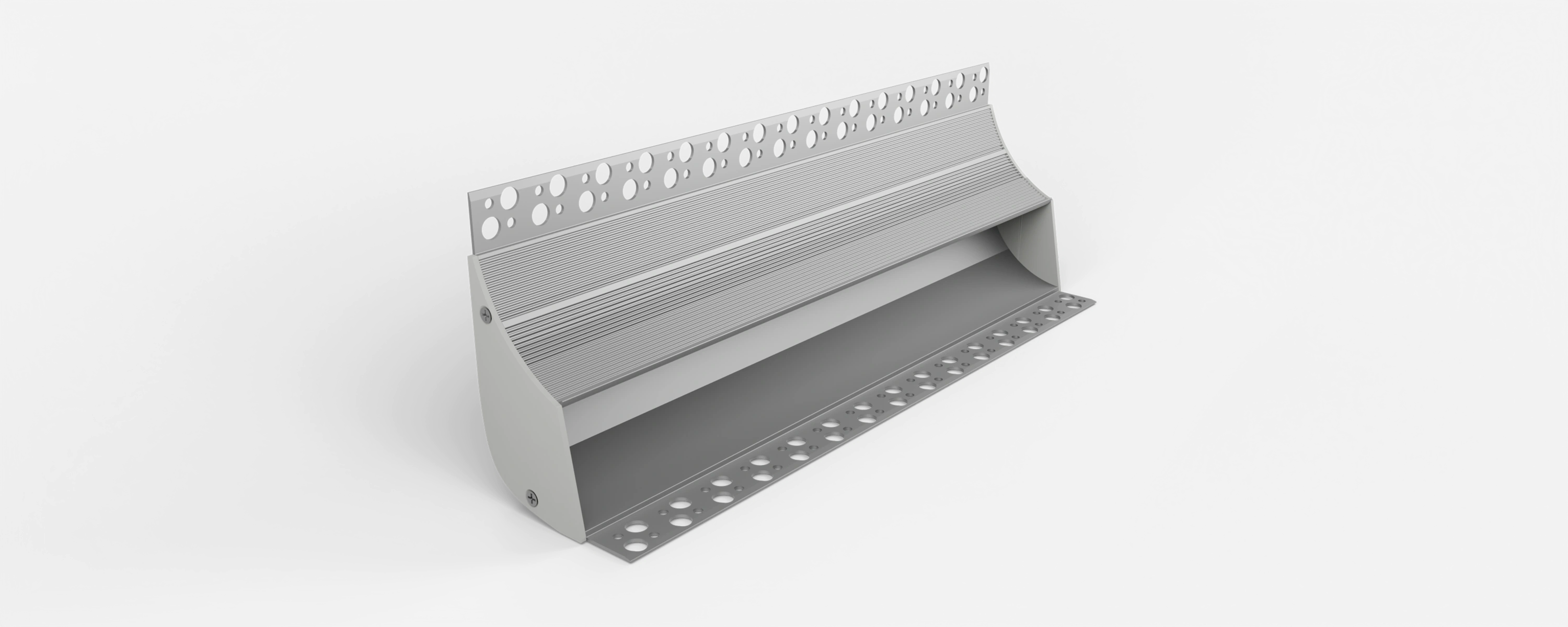

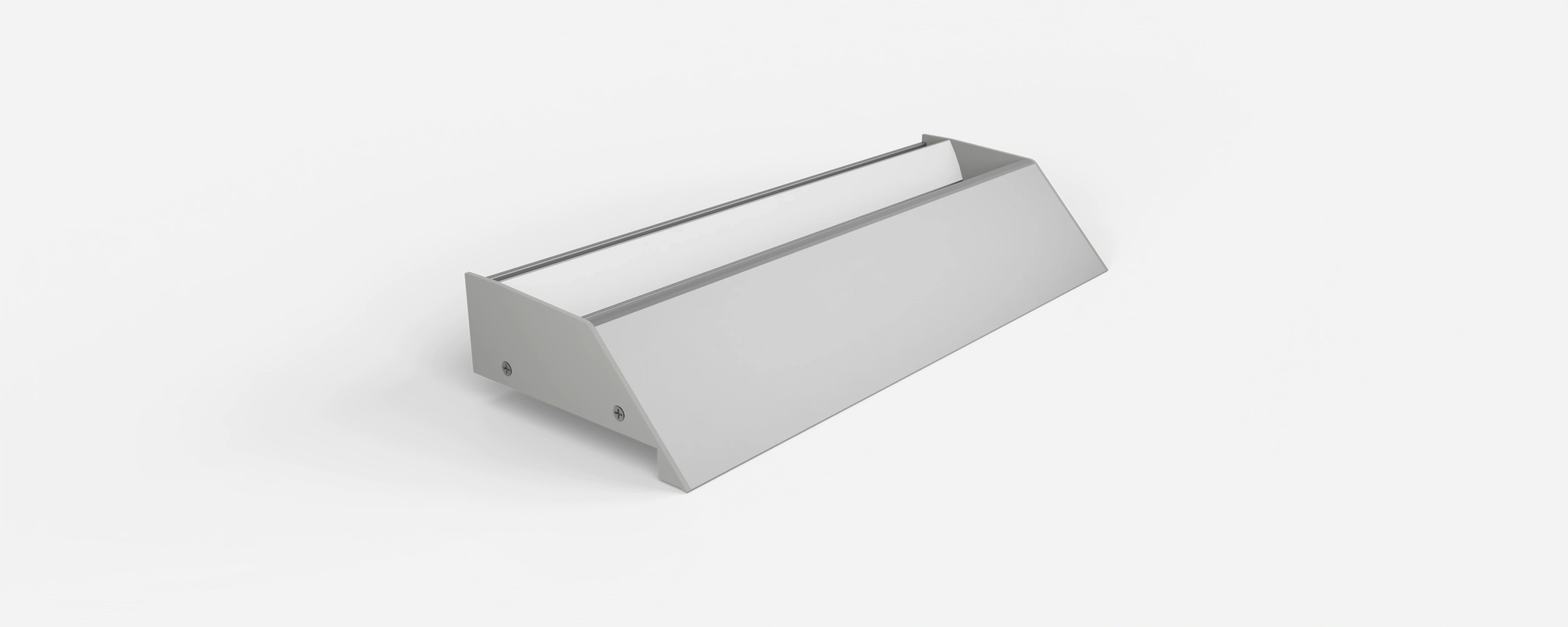

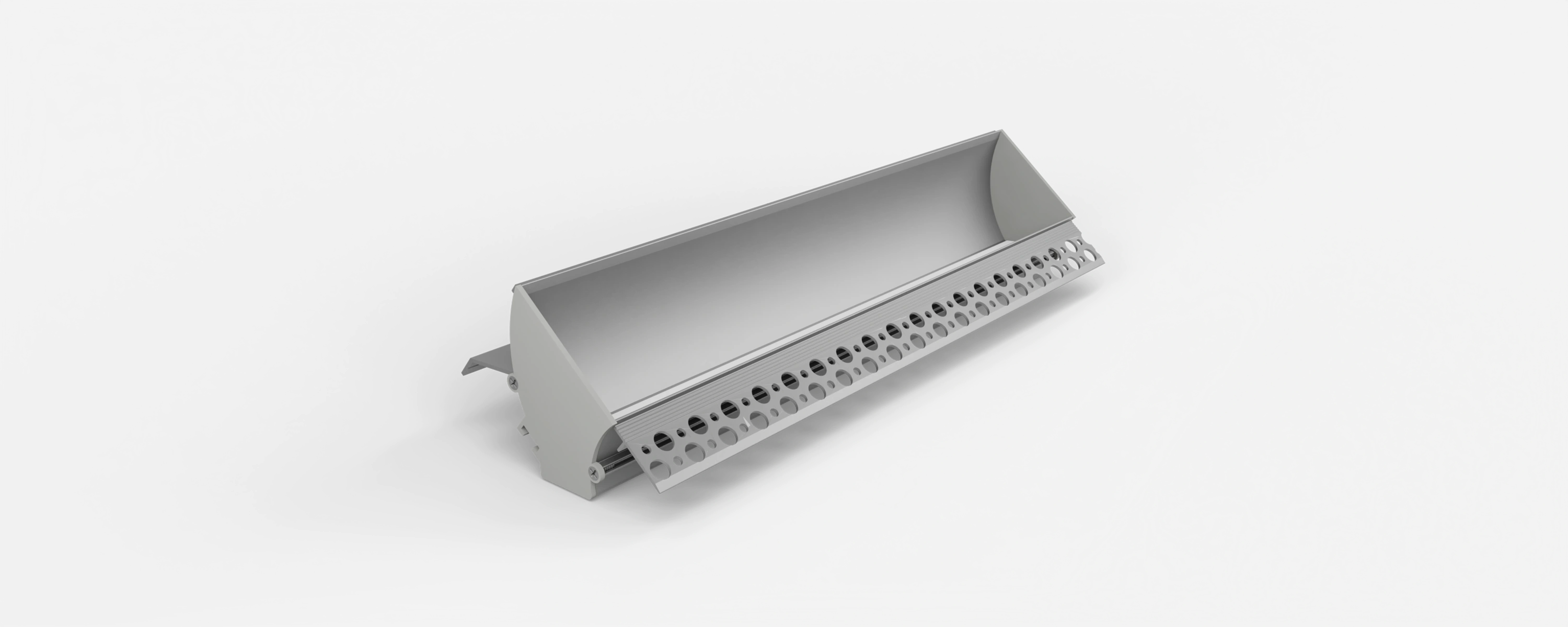

Flex Profiles

Complementing accessories for Flexi Range

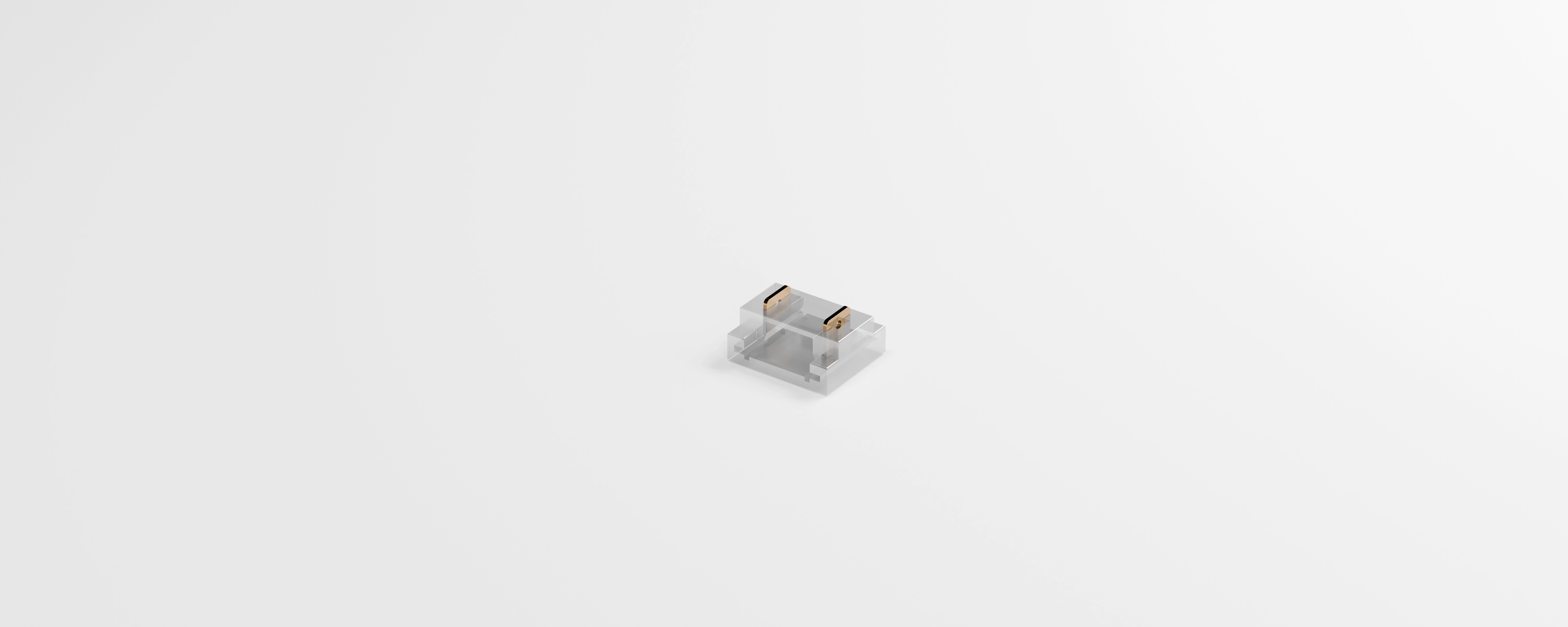

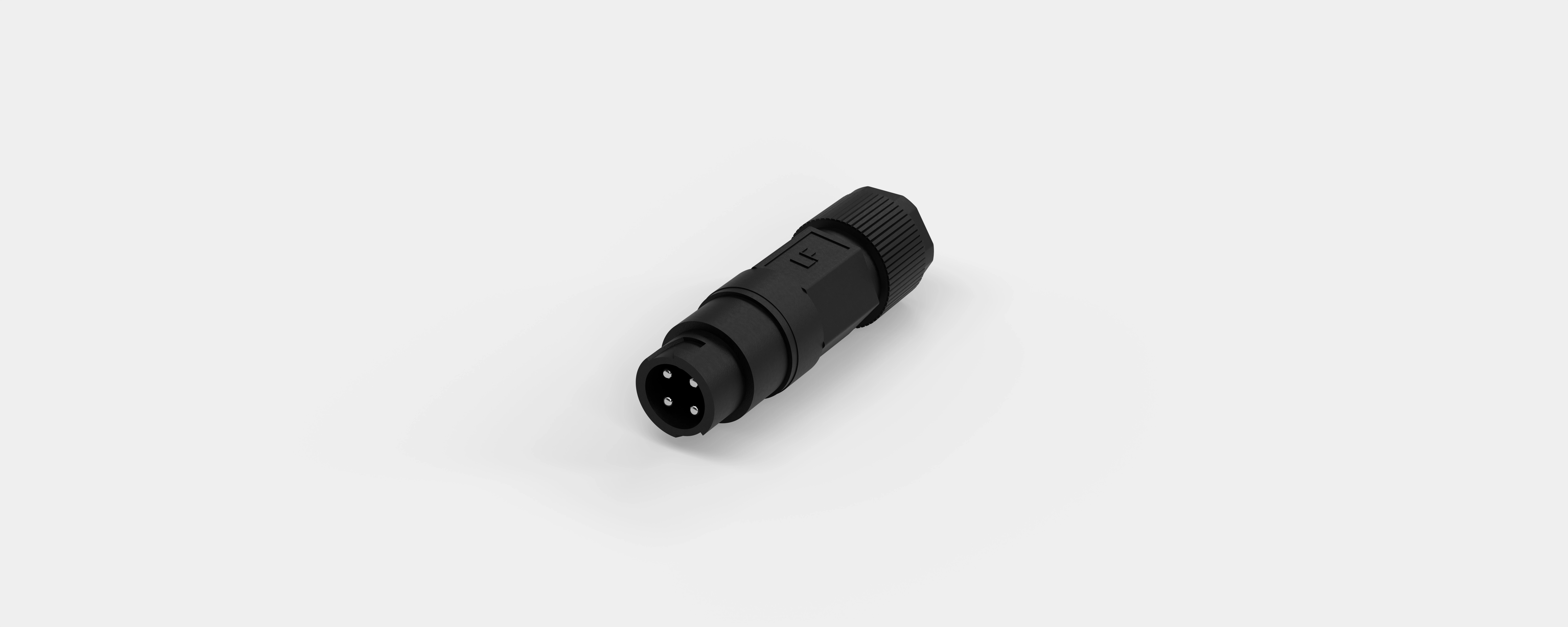

Flex Connectors

Complementing accessories for Flexi Range

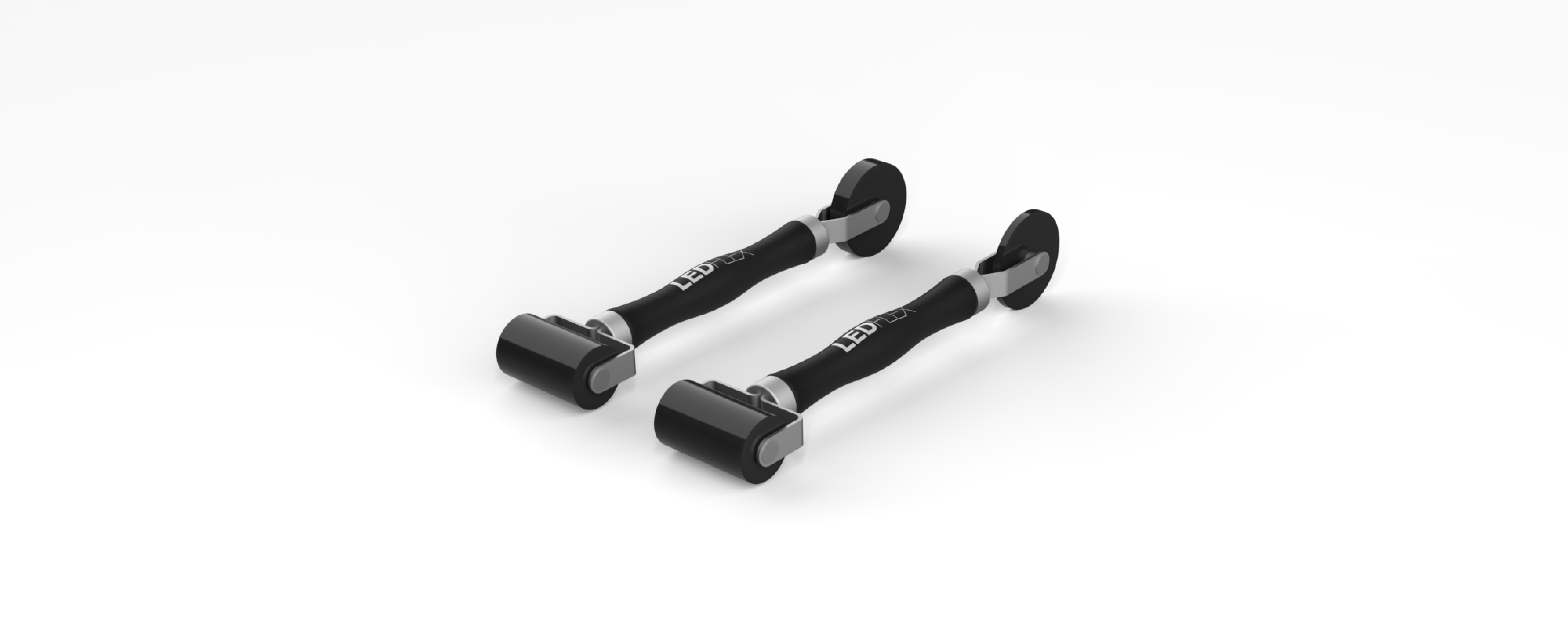

Flex Tools

Complementing Accessory Toolkit for Flex Installation

Range Application

Flexi Neon offers highly durable, flexible and diffused linear LEDs built for harsh environments. The range consists of IP68 PVC and Silicone encapsulated solutions for indoor/outdoor, underwater, high-temperature, ATEX, and grazing applications. These UV, flame, solvent, and saltwater resistant LEDs are available in various dimensions, bending options, and colour options including Single Color, Dynamic White, RGBW, and Pixel configurations.
View Family

Ultimo Neon

IP68 Silicone Encapsulated Neon for Indoor/Outdoor Applications

Aqua Neon

IP68 PVC Encapsulated Neon for Underwater Applications

ATEX Neon

Atex Certified Neons for Hazardous Environments

Thermo Neon

High Temperature and High Humidity Neon for Sauna Applications

Optico Neon

Dual-Bending Optical Neon for Grazing Curved Surfaces

Neon Profile

Complementing accessories for the Flexi Neon

Neon Clips

Complementing accessories for the Flexi Neon

Neon Brackets

Complementing accessories for the Neon Profiles

Neon Connectors

Complementing accessories for the Neon Profiles

Neon Tools

Complementing Accessory Toolkit for Neon Installation

Range Application

The Flexi In-Ground range consists of drive-over flexible linear fixtures specifically designed for outdoor applications. This all-in-one complete solution combines a durable stainless steel body with a silicone cover, encasing integrated diffused LED lighting. With an IK10 and IP67 rating, these fixtures can endure weights of up to 3.5 tonnes at any point, ensuring robust performance under heavy loads. The 3D bendable design provides enhanced adaptability, allowing for versatile installation options. The range is available in Single Colour with color temperatures varying from 2100K to 5000K
View Family

Delta In-Ground

Dual Bend Flexible LED Lighting Fixtures for Drive-over In-ground Applications

Range Application

The Flexi Panel range consists of ultra-thin, flexible LED light sheets designed for direct adhesion to flat or curved surfaces. These panels offer a variety of lighting options including Single Color, Dynamic White, RGB/W, and Pixel control, enabling customisable illumination, and can be cut to desired shapes, maximising design and application versatility.
View Family

Flexi Panel White

Single Colour Flexible LED Light Sheet

Flexi Panel Dual Colour

Dynamic White Flexible LED Light Sheet

Flexi Panel Specialist

Colour changing/Pixel Addressable Flexible LED Light Sheet

Range Application

The Rigid Grazer range offers tailored solutions for seamless wall grazing applications, featuring two core variants: Maxi and Nano. Rigid Grazer Maxi is a high-efficient solution which excels in providing uniform wall grazing over extended runs. Rigid Grazer Nano presents a sleek, minimalist and low-glare design optimised for precision wall grazing. Both variants offer a wide range of beam angles to suit diverse applications.
View Family

Rigid Grazer Nano

Minimalist Wall Grazers for Ultimate Precision

Rigid Grazer Maxi

High Efficiency Wall Grazer for Extended Runs

Range Application

The Joinery Range features linear lighting systems designed for seamless integration into architectural joinery and millwork. It features specialised families for shelving, closet rails, pull-handles, and skirting, each engineered with precision optics, minimalist profiles, and refined detailing to deliver both functional and ambient illumination. Supported by a comprehensive suite of drivers and integrated sensors, this fully connected, plug-and-play solution simplifies installation while maintaining visual continuity and design integrity.
View Family

Shelf

Seamless shelving integration for customisable task, ambient, and accent lighting

Pull Handles

Horizontal and vertical integrated handle-free cabinet lighting solutions

Skirt

Joinery solutions for base integration, delivering floor-grazing illumination

Sensors

Integrated sensor solutions for seamless lighting control within joinery applications

Drive

Power supplies engineered to seamlessly support joinery lighting solutions

Range Application

The Rigid Optico range consists of high-power LED fixtures designed for dynamic exterior wall washing. With an IP67 rating and toughened glass lens, these high-efficiency fixtures are built to endure harsh weather conditions. The range offers a spectrum of beam angles and colour options including Dynamic White, RGB, and RGBW.
View Family

Rigid Optico 40

High-power LED fixtures for exterior wall washing

Rigid Optico Brackets

Complementing accessories for Rigid Optico 40

Rigid Optico Louvres

Complementing accessories for Rigid Optico 40

Range Application

The Rigid Line offers high-performance, designer-grade commercial lighting solutions. Featuring innovative anti-glare technology and unique optical diffusers, it delivers exceptional light quality with minimal discomfort. This versatile system allows for suspended or recessed mounting, and single or double-sided illumination. Additionally, seamless edge-to-edge connection enables continuous runs for expansive lighting designs.
View Family

Rigid Line Opal

Rigid Line Prism

Rigid Line Concave

Rigid Line Hexagonal

Rigid Line Louvre

Range Application

The LEDFlex control drivers are designed to integrate with the increasing range of available controllers, offering seamless and flicker-free dimming. They are available in a range of protocols, including DMX, DALI, Pixel, Switching, Triac and 0-10V, and can be used as a part of a simple standalone lighting system or for larger management systems.

PSU & Drivers

Cables

Product Archive

View Product Archive

LEDFlex is committed to continuous improvement, which means staying on the cutting edge of technology, optimising performance for peak efficiency, and ensuring compliance with the latest regulations. To reflect these ongoing efforts, we occasionally discontinue older generations of products. This allows us to focus on the latest advancements and innovations, ensuring that our offerings meets the evolving needs of the market. You can find a list of discontinued products on this page.
About
Projects
Press & Media
Contact
EN
- English
- Chinese
- German
- Spanish
- Japanese
- Italian
- Polish
- French
- Turkish
- Hindi
- Portuguese
mm / m
- Metric (mm / m)
- Imperial (in / ft)

Flexi Range

The Flexi Range is a versatile series of flexible, linear LED light engines designed for diverse interior and exterior applications. Each family offers unique features and is streamlined to ease specification. Available in IP20, IP54, and IP67, the range includes Single Colour, Dynamic White, RGBW, and Pixel options, with a variety of chip counts, wattages, and colour temperatures. Flexi Range can be seamlessly combined with a selection of Flex Profiles to address any linear lighting application.

Nano Flex 160 IP20

View Drawing

Nano Flex 160 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

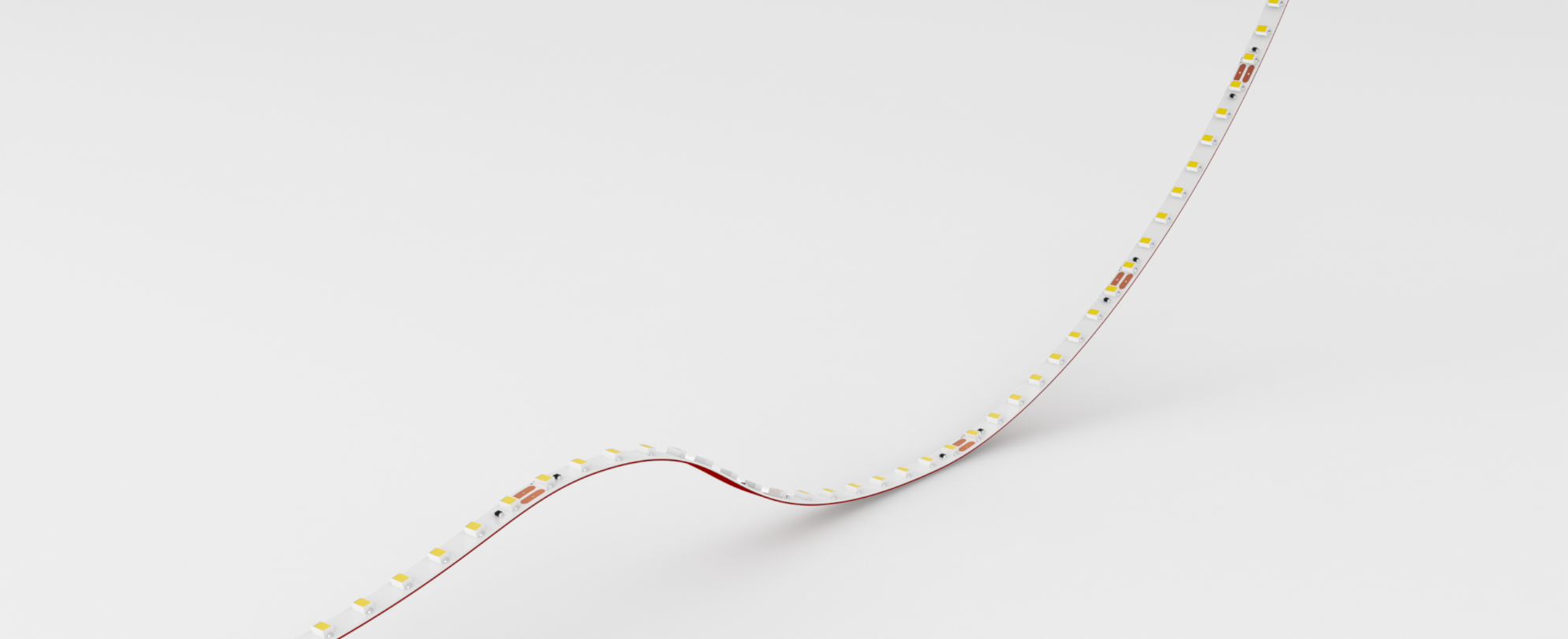

Nano Flex 160 IP54

View Drawing

Nano Flex 160 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Nano Flex 240 IP20

View Drawing

Nano Flex 240 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

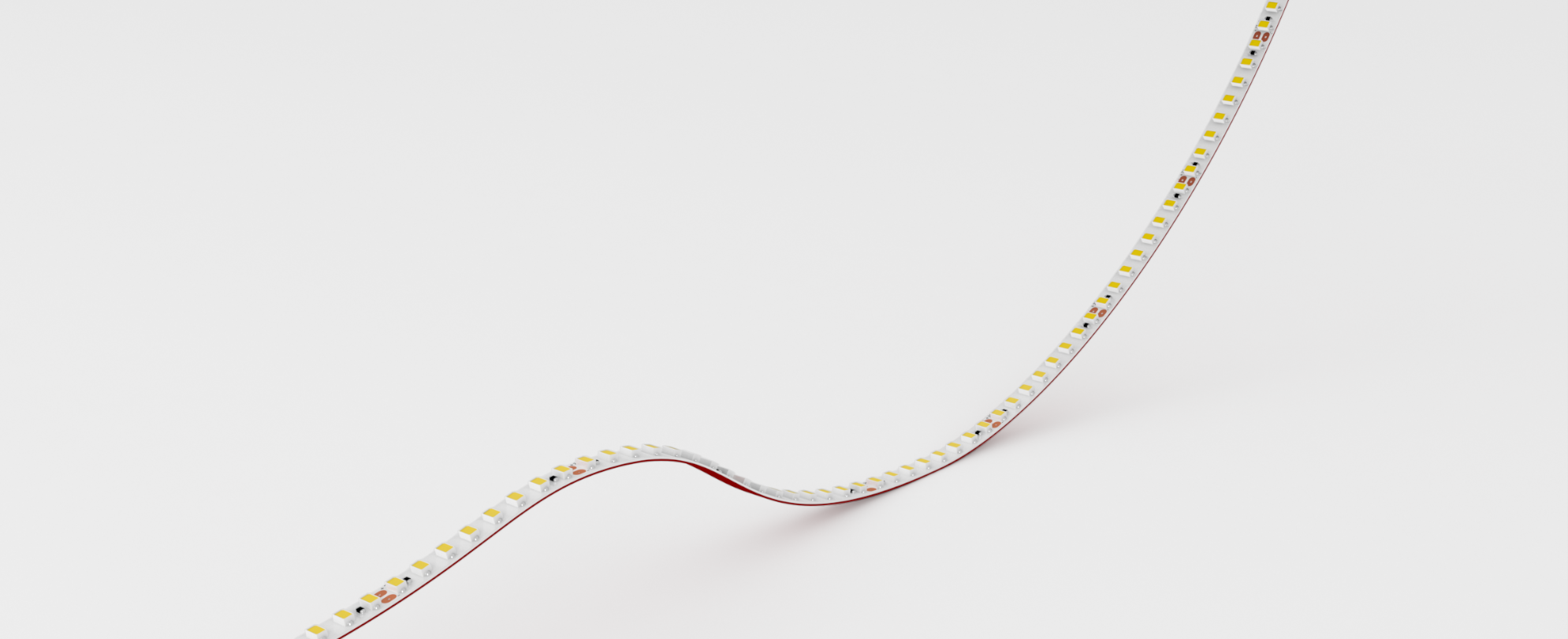

Nano Flex 240 IP54

View Drawing

Nano Flex 240 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

Nano Flex Solo 160 IP20

View Drawing

Nano Flex Solo 160 IP20

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Nano Flex Solo 160 IP54

View Drawing

Nano Flex Solo 160 IP54

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Nano Flex Solo Edge 160 IP20

View Drawing

Nano Flex Solo Edge 160 IP20

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Nano Flex Solo Edge 160 IP54

View Drawing

Nano Flex Solo Edge 160 IP54

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

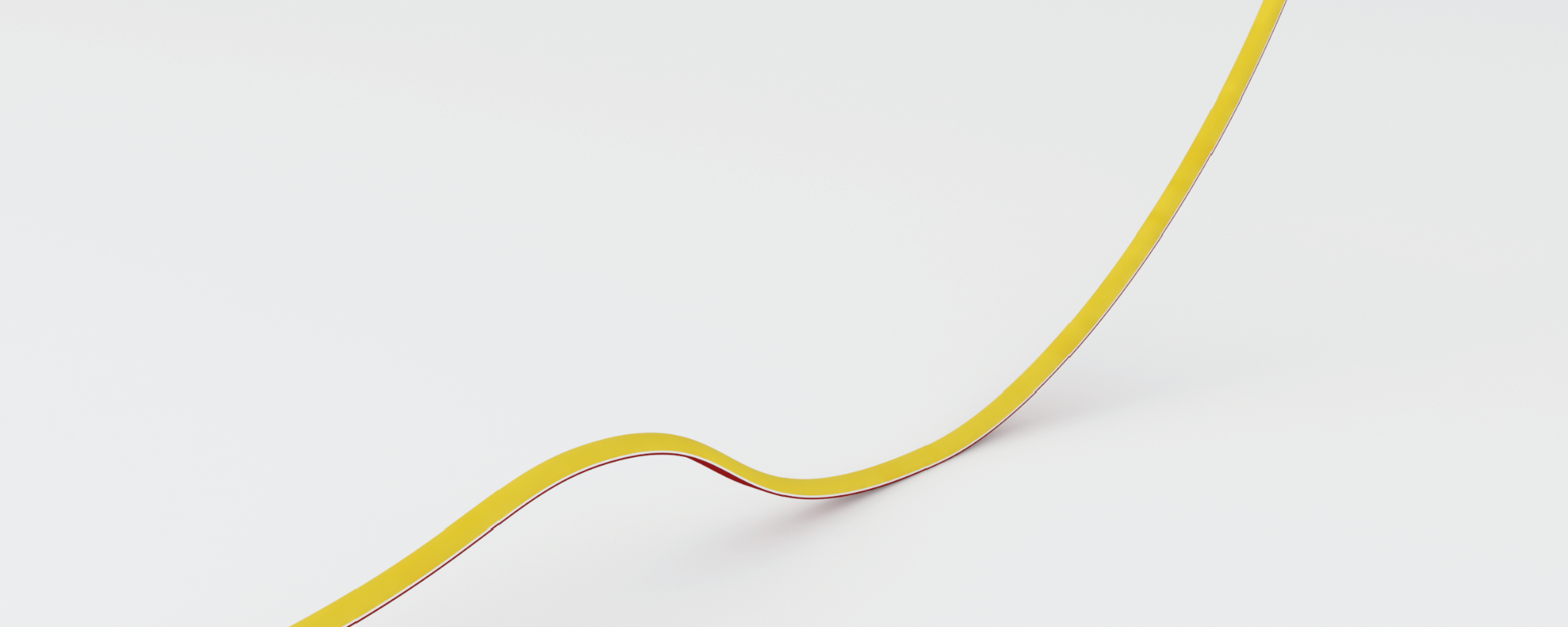

Nano Line 480 IP20

View Drawing

Nano Line 480 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.07 mm
Max Power Length	6000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.07 mm
Max Power Length	6000 mm

Nano Flex Dynamic White 160 IP20

View Drawing

Nano Flex Dynamic White 160 IP20

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

Nano Flex Dynamic White 160 IP54

View Drawing

Nano Flex Dynamic White 160 IP54

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

Eco Flex 80 IP20

View Drawing

Eco Flex 80 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Eco Flex 80 IP54

View Drawing

Eco Flex 80 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Eco Flex 80 IP67

View Drawing

Eco Flex 80 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Eco Flex 160 IP20

View Drawing

Eco Flex 160 IP20

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Eco Flex 160 IP54

View Drawing

Eco Flex 160 IP54

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Eco Flex 160 IP67

View Drawing

Eco Flex 160 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Eco Flex 240 IP20

View Drawing

Eco Flex 240 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Eco Flex 240 IP54

View Drawing

Eco Flex 240 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Eco Flex 240 IP67

View Drawing

Eco Flex 240 IP67

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Eco Flex Solo 160 IP20

View Drawing

Eco Flex Solo 160 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

Eco Flex Solo 160 IP54

View Drawing

Eco Flex Solo 160 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

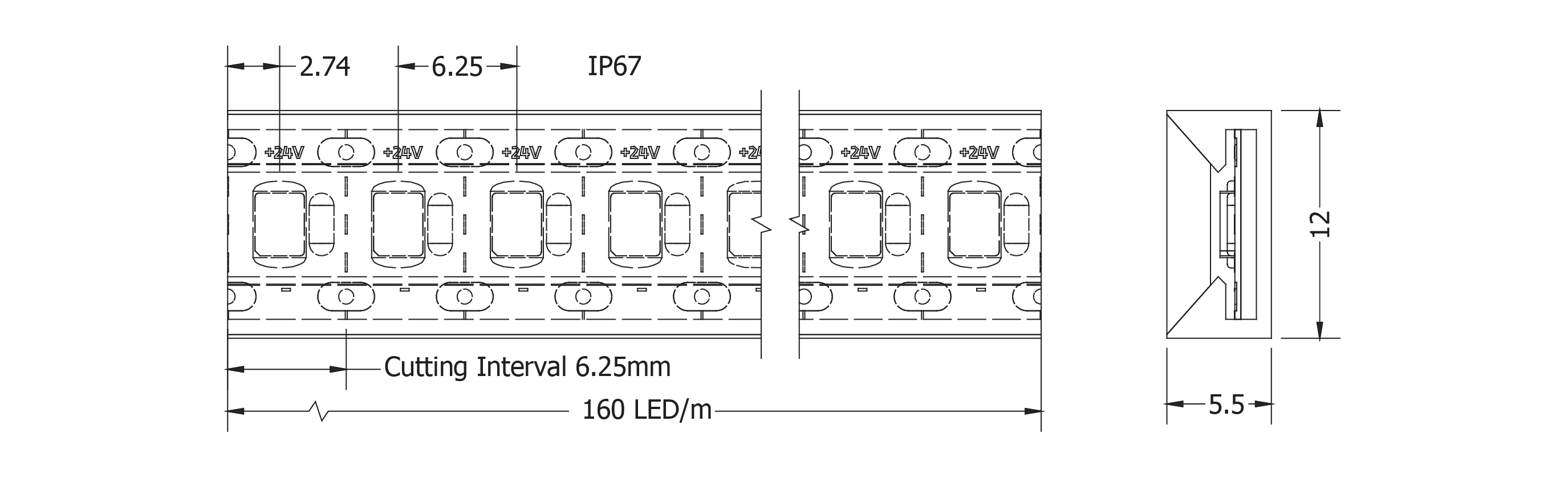

Eco Flex Solo 160 IP67

View Drawing

Eco Flex Solo 160 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

Eco Flex Dynamic White 120 IP20

View Drawing

Eco Flex Dynamic White 120 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

Eco Flex Dynamic White 120 IP54

View Drawing

Eco Flex Dynamic White 120 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

Eco Flex Dynamic White 120 IP67

View Drawing

Eco Flex Dynamic White 120 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	66.7 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.1 mm
Max Power Length	8000 mm

Eco Flex DTW 80 IP20

View Drawing

Eco Flex DTW 80 IP20

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

View product

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

Eco Flex DTW 80 IP54

View Drawing

Eco Flex DTW 80 IP54

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

View product

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

Eco Flex DTW 80 IP67

View Drawing

Eco Flex DTW 80 IP67

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

View product

Power Consumption	14.4 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm

Eco Flex Long Run 160 IP20

View Drawing

Eco Flex Long Run 160 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Eco Flex Long Run 160 IP54

View Drawing

Eco Flex Long Run 160 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Eco Flex Long Run 160 IP67

View Drawing

Eco Flex Long Run 160 IP67

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Lumen Line Solo 160 IP20

View Drawing

Lumen Line Solo 160 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

Lumen Line Solo 160 IP54

View Drawing

Lumen Line Solo 160 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

Lumen Line Solo 160 IP67

View Drawing

Lumen Line Solo 160 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	14000 mm

Lumen Line 80 IP20

View Drawing

Lumen Line 80 IP20

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Lumen Line 80 IP54

View Drawing

Lumen Line 80 IP54

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Lumen Line 80 IP67

View Drawing

Lumen Line 80 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	8000 mm

Lumen Line 160 IP20

View Drawing

Lumen Line 160 IP20

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Lumen Line 160 IP54

View Drawing

Lumen Line 160 IP54

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Lumen Line 160 IP67

View Drawing

Lumen Line 160 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	10000 mm

Lumen Line 240 IP20

View Drawing

Lumen Line 240 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Lumen Line 240 IP54

View Drawing

Lumen Line 240 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Lumen Line 240 IP67

View Drawing

Lumen Line 240 IP67

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	2.4 > 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Lumen Line Dynamic White 120 IP20

View Drawing

Lumen Line Dynamic White 120 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

Lumen Line Dynamic White 120 IP54

View Drawing

Lumen Line Dynamic White 120 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

Lumen Line Dynamic White 120 IP67

View Drawing

Lumen Line Dynamic White 120 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	15000 mm

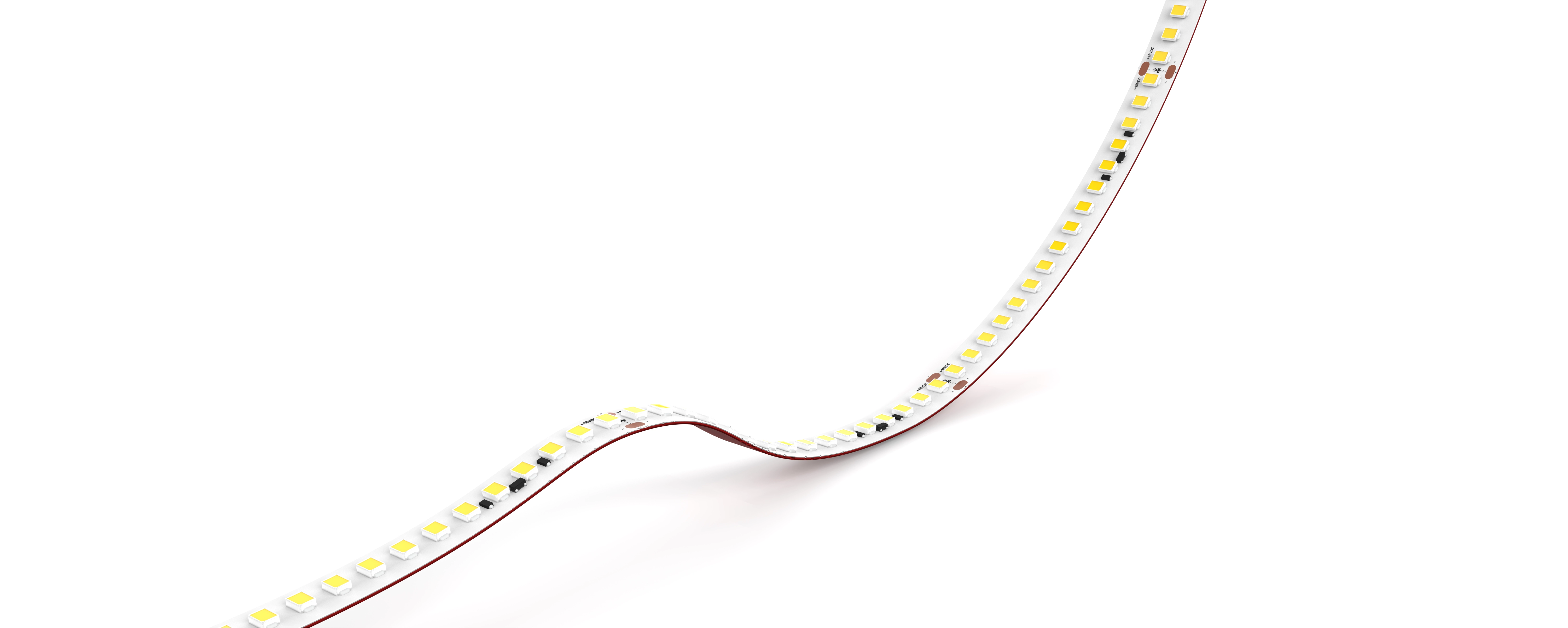

Lumen Line Long Run 160 IP20

View Drawing

Lumen Line Long Run 160 IP20

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Lumen Line Long Run 160 IP54

View Drawing

Lumen Line Long Run 160 IP54

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 > 24 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Lumen Line Long Run 160 IP67

View Drawing

Lumen Line Long Run 160 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	100 mm
Voltage	48 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	60000 mm

Double Line 160 IP20

View Drawing

Double Line 160 IP20

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

Double Line 160 IP54

View Drawing

Double Line 160 IP54

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

Double Line 240 IP20

View Drawing

Double Line 240 IP20

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

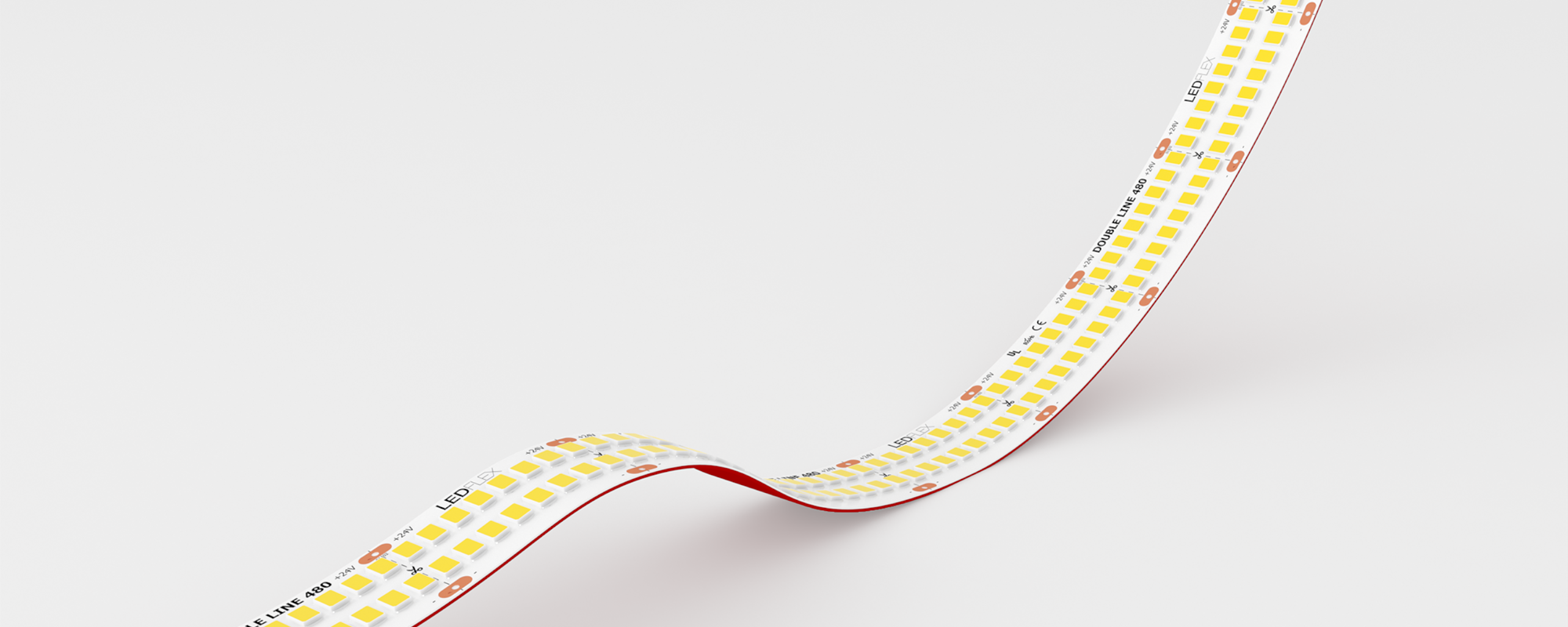

Double Line 240 IP54

View Drawing

Double Line 240 IP54

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	7000 mm

Double Line Dynamic White 80 IP20

View Drawing

Double Line Dynamic White 80 IP20

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Double Line Dynamic White 80 IP54

View Drawing

Double Line Dynamic White 80 IP54

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	6000 mm

Triple Line 160 IP20

View Drawing

Triple Line 160 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Triple Line 160 IP54

View Drawing

Triple Line 160 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Triple Line 240 IP20

View Drawing

Triple Line 240 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

Triple Line 240 IP54

View Drawing

Triple Line 240 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	8000 mm

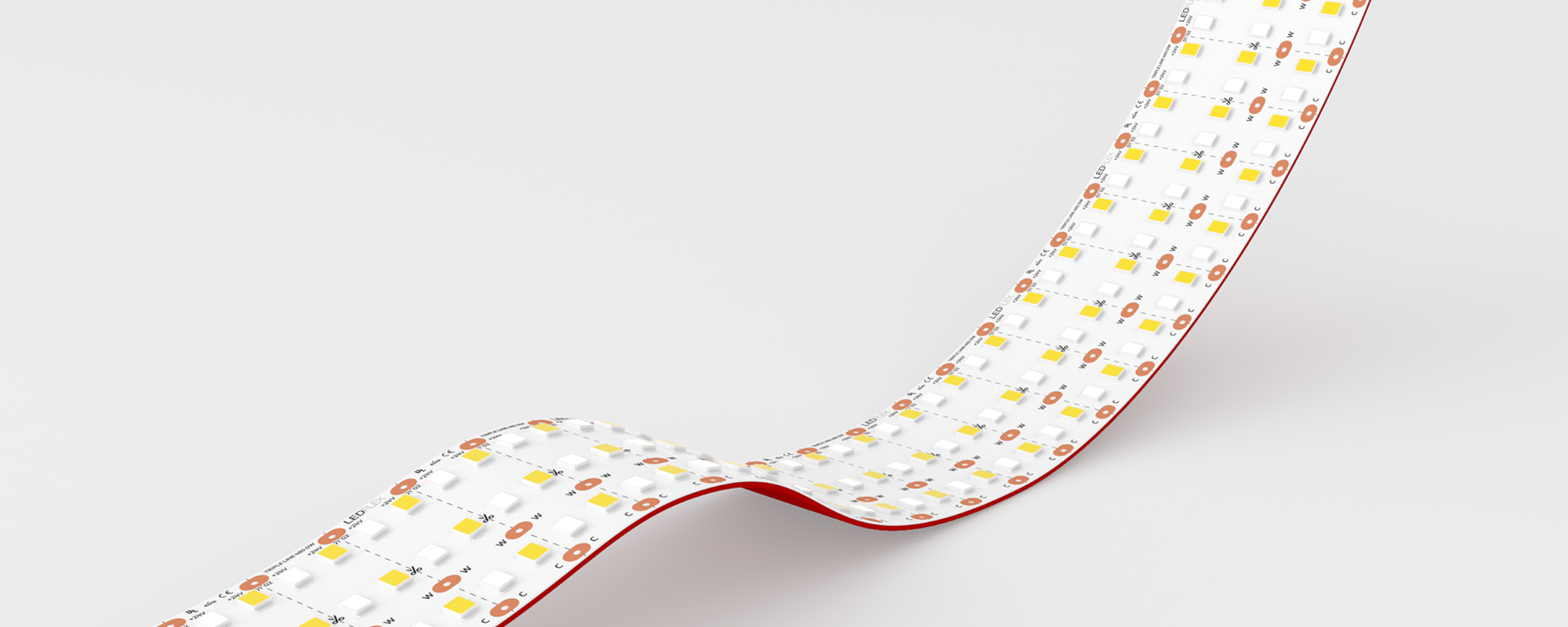

Triple Line Dynamic White 80 IP20

View Drawing

Triple Line Dynamic White 80 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

Triple Line Dynamic White 80 IP54

View Drawing

Triple Line Dynamic White 80 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	7000 mm

Quadruple Line 160 IP20

View Drawing

Quadruple Line 160 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

Quadruple Line 160 IP54

View Drawing

Quadruple Line 160 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	12000 mm

Quadruple Line 240 IP20

View Drawing

Quadruple Line 240 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

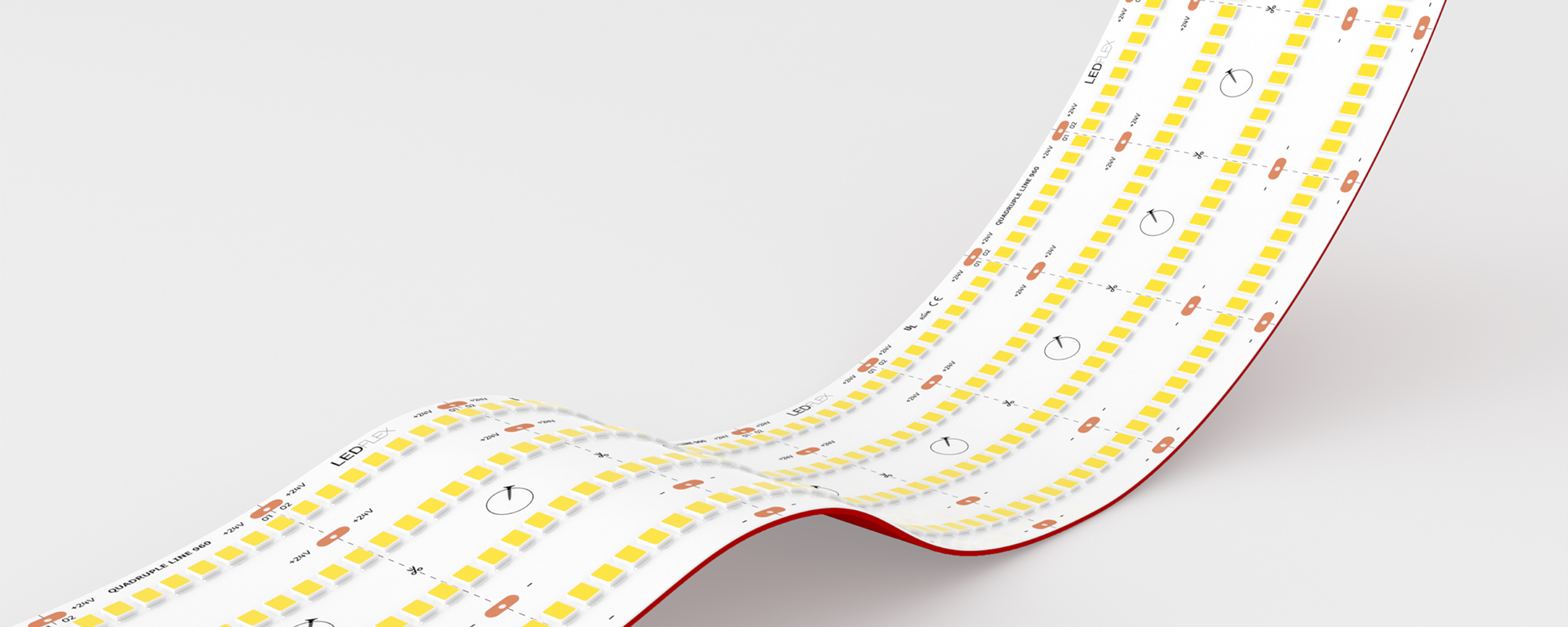

Quadruple Line 240 IP54

View Drawing

Quadruple Line 240 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	33.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	12000 mm

Quadruple Line Dynamic White 80 IP20

View Drawing

Quadruple Line Dynamic White 80 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Quadruple Line Dynamic White 80 IP54

View Drawing

Quadruple Line Dynamic White 80 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	12.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

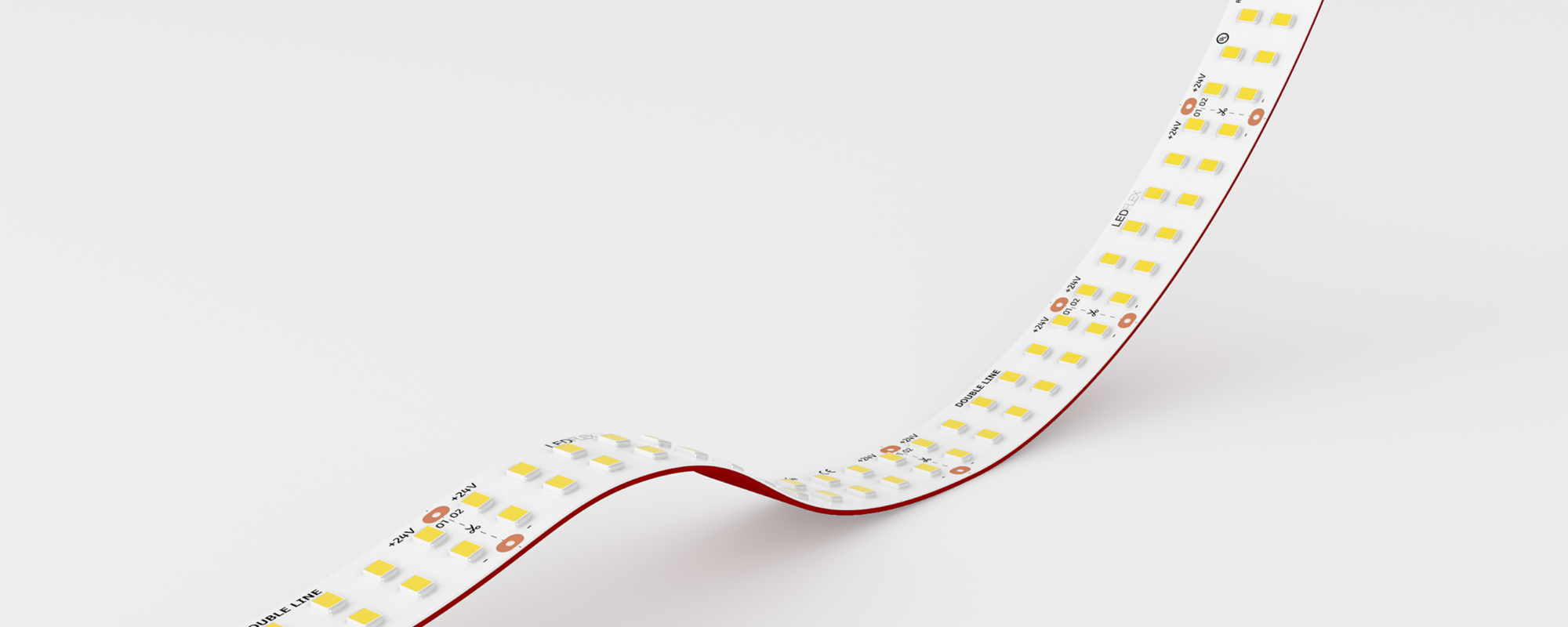

Double Line 120 IP20

View Drawing

Double Line 120 IP20

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	7000 mm

Double Line 120 IP54

View Drawing

Double Line 120 IP54

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	7000 mm

View product

Power Consumption	14.4 \| 19.2 \| 24 \| 26.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	7000 mm

Double Line RGBW 120 IP20

View Drawing

Double Line RGBW 120 IP20

Power Consumption	25 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	25 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Double Line RGBW 120 IP54

View Drawing

Double Line RGBW 120 IP54

Power Consumption	25 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	25 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Triple Line 120 IP20

View Drawing

Triple Line 120 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.78 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.78 mm
Max Power Length	8000 mm

Triple Line 120 IP54

View Drawing

Triple Line 120 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.78 mm
Max Power Length	8000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.78 mm
Max Power Length	8000 mm

Triple Line RGBW 120 IP20

View Drawing

Triple Line RGBW 120 IP20

Power Consumption	35 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	35 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

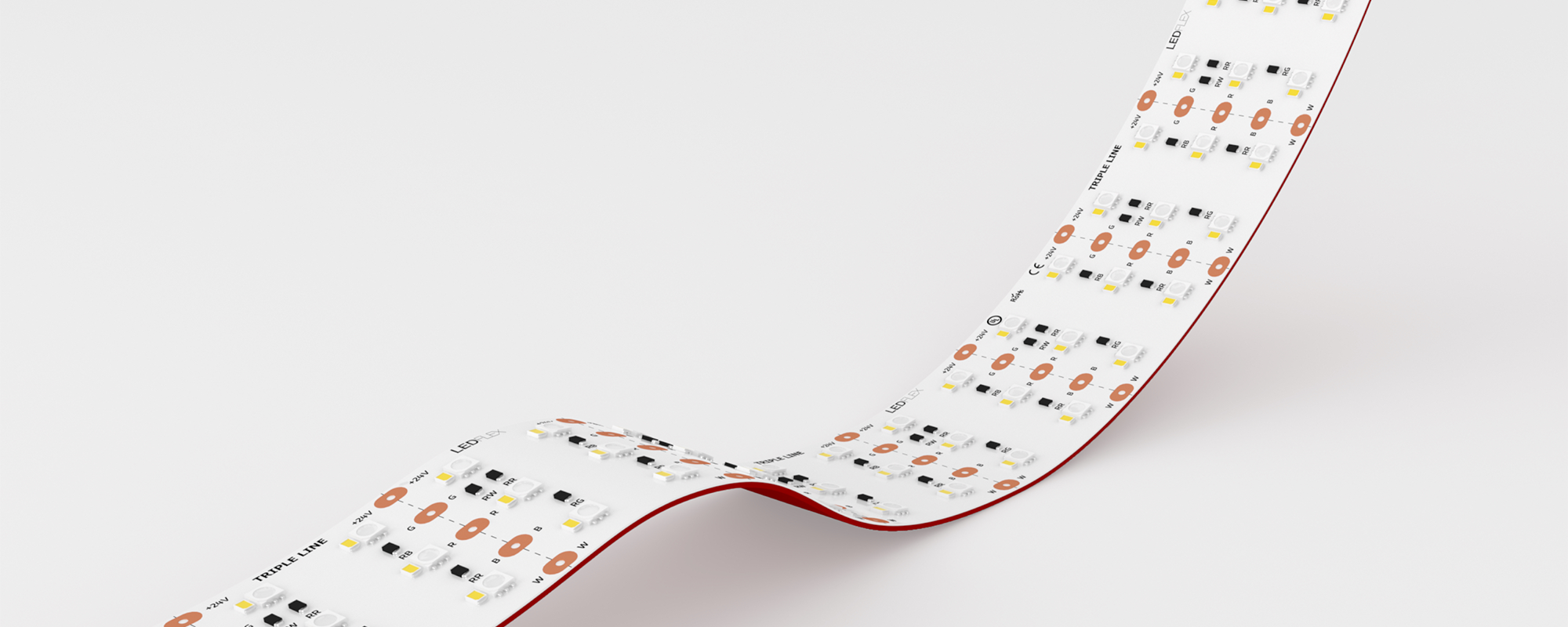

Triple Line RGBW 120 IP54

View Drawing

Triple Line RGBW 120 IP54

Power Consumption	35 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	35 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

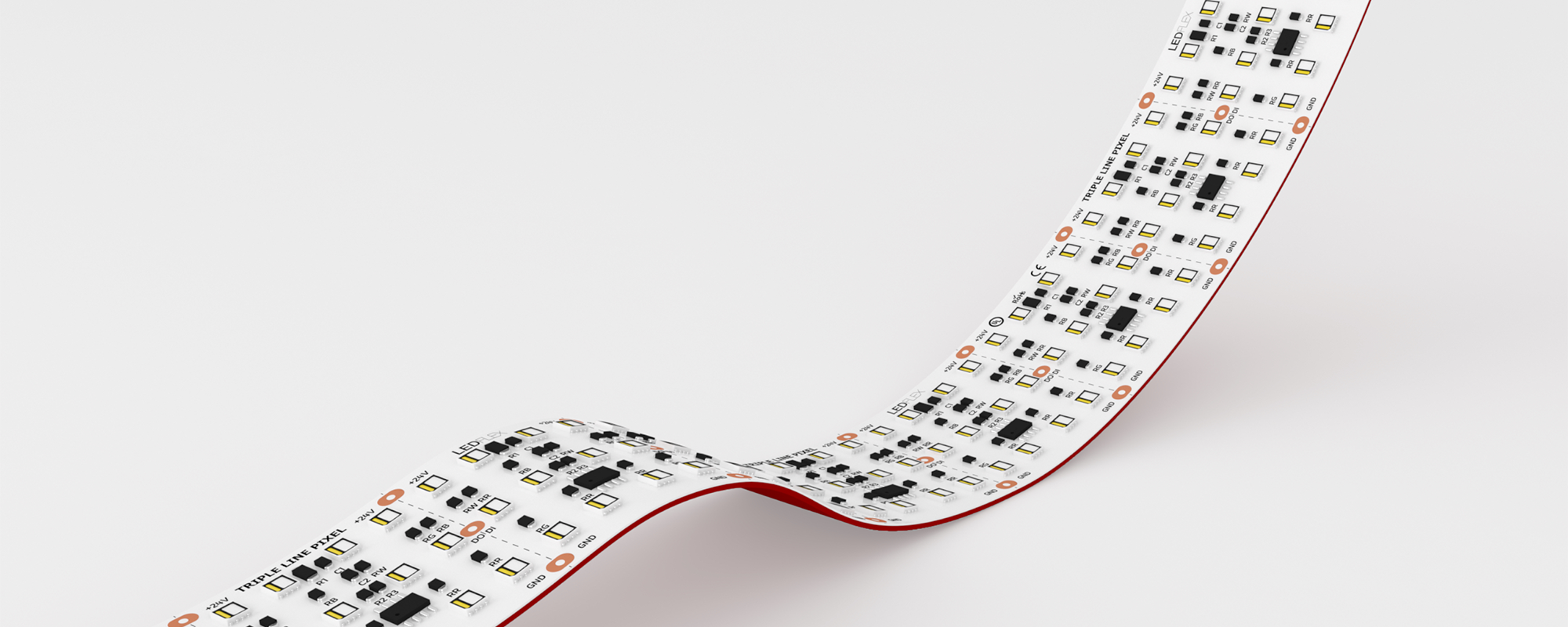

Triple Line RGBW Pixel 120 IP20

View Drawing

Triple Line RGBW Pixel 120 IP20

Power Consumption	49 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	49 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Triple Line RGBW Pixel 120 IP54

View Drawing

Triple Line RGBW Pixel 120 IP54

Power Consumption	49 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	49 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Quadruple Line 120 IP20

View Drawing

Quadruple Line 120 IP20

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.08 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.08 mm
Max Power Length	12000 mm

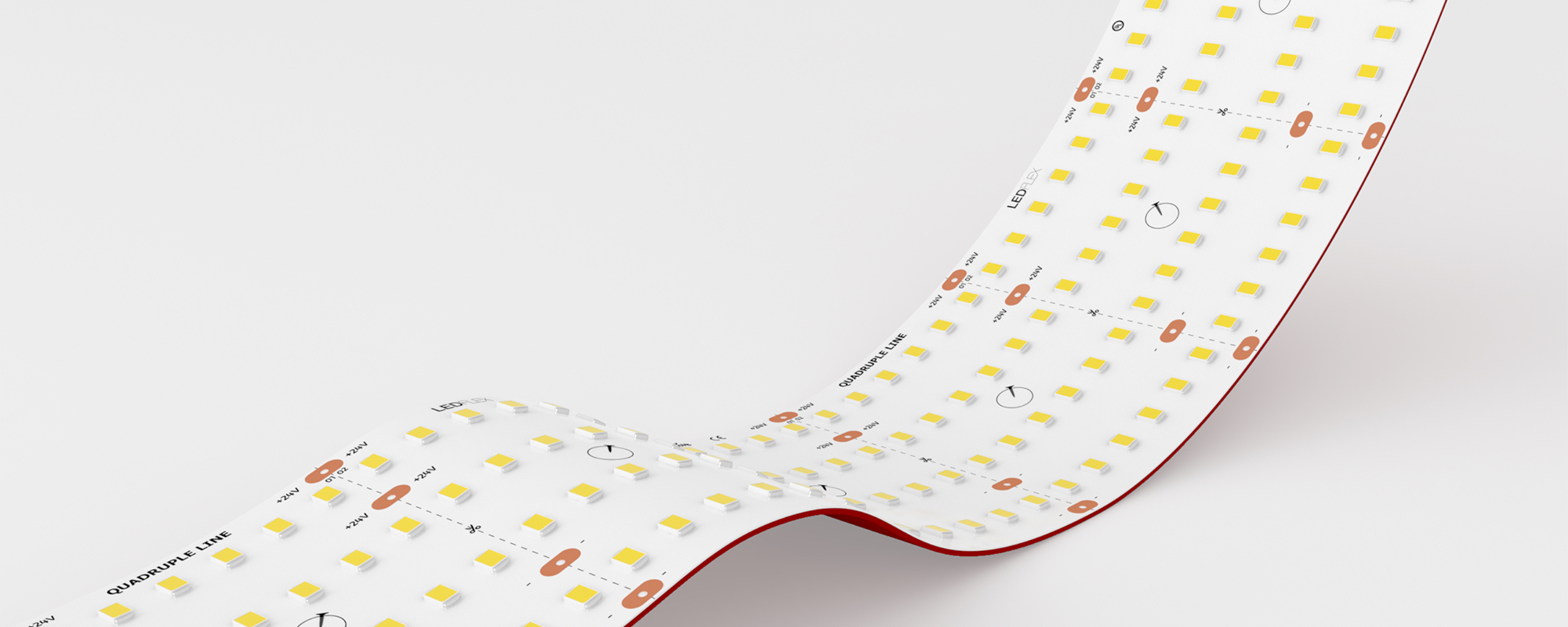

Quadruple Line 120 IP54

View Drawing

Quadruple Line 120 IP54

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.08 mm
Max Power Length	12000 mm

View product

Power Consumption	14.4 > 28.8 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	2.08 mm
Max Power Length	12000 mm

Quadruple Line RGBW 120 IP20

View Drawing

Quadruple Line RGBW 120 IP20

Power Consumption	45 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	45 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Quadruple Line RGBW 120 IP54

View Drawing

Quadruple Line RGBW 120 IP54

Power Consumption	45 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	45 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Quadruple Line Pixel 120 IP20

View Drawing

Quadruple Line Pixel 120 IP20

Power Consumption	65 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	65 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Quadruple Line Pixel 120 IP54

View Drawing

Quadruple Line Pixel 120 IP54

Power Consumption	65 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	65 W/m
Cutting Intervals	25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

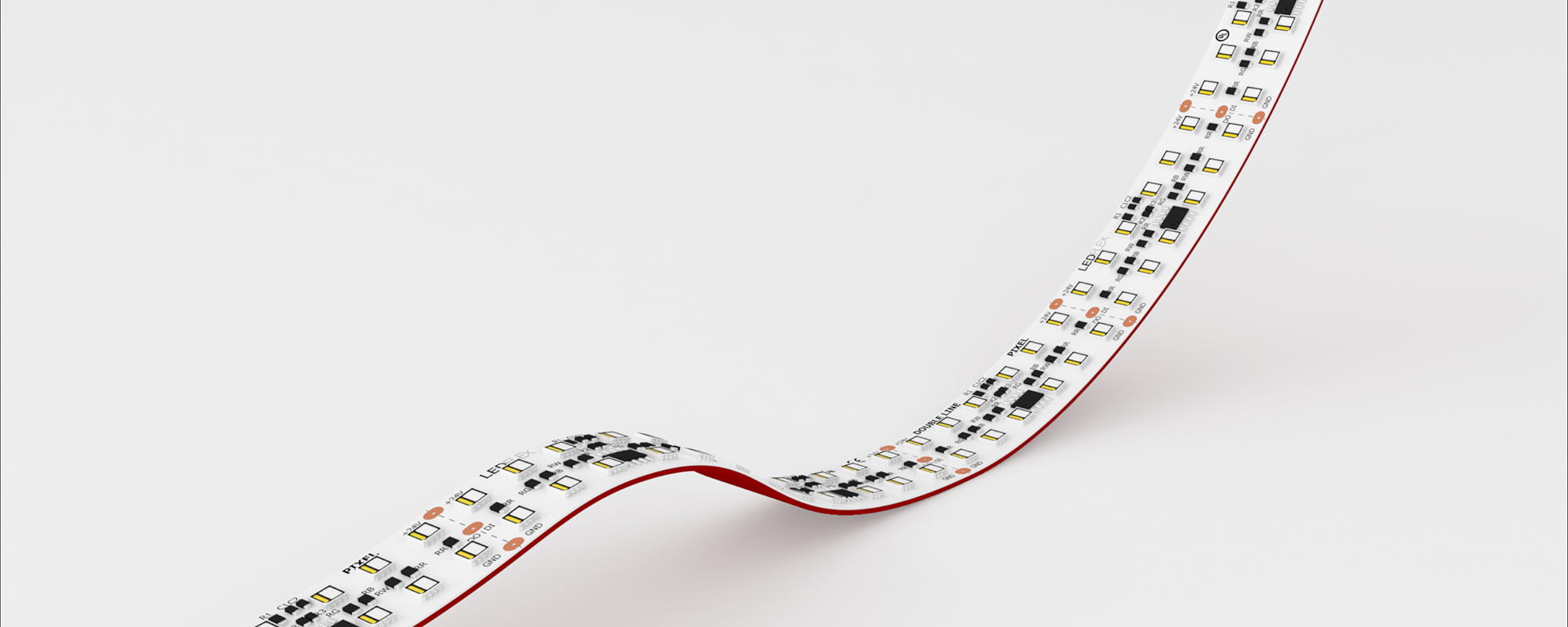

Double Line RGBW Pixel 120 IP20

View Drawing

Double Line RGBW Pixel 120 IP20

Power Consumption	33 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	33 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Double Line RGBW Pixel 120 IP54

View Drawing

Double Line RGBW Pixel 120 IP54

Power Consumption	33 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

View product

Power Consumption	33 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	5000 mm

Power Flex 80 IP20

View Drawing

Power Flex 80 IP20

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

Power Flex 80 IP54

View Drawing

Power Flex 80 IP54

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

Power Flex 80 IP67

View Drawing

Power Flex 80 IP67

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

View product

Power Consumption	4.8 \| 9.6 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	6000 mm

Power Flex 160 IP20

View Drawing

Power Flex 160 IP20

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Power Flex 160 IP54

View Drawing

Power Flex 160 IP54

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

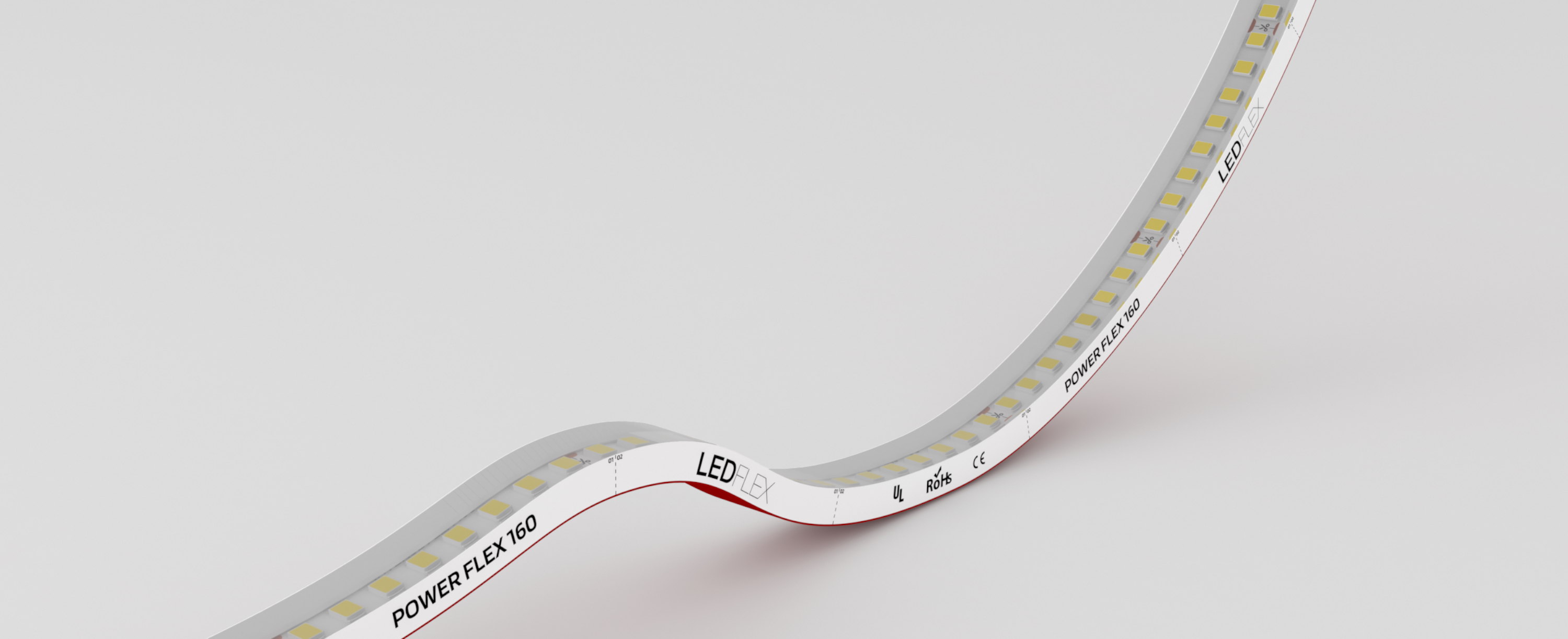

Power Flex 160 IP67

View Drawing

Power Flex 160 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Power Flex Solo 160 IP20

View Drawing

Power Flex Solo 160 IP20

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Power Flex Solo 160 IP54

View Drawing

Power Flex Solo 160 IP54

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Power Flex Solo 160 IP67

View Drawing

Power Flex Solo 160 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 W/m
Cutting Intervals	6.25 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	8000 mm

Power Flex 240 IP20

View Drawing

Power Flex 240 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

Power Flex 240 IP54

View Drawing

Power Flex 240 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

Power Flex 240 IP67

View Drawing

Power Flex 240 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	10000 mm

Power Flex Dynamic White 120 IP20

View Drawing

Power Flex Dynamic White 120 IP20

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

Power Flex Dynamic White 120 IP54

View Drawing

Power Flex Dynamic White 120 IP54

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 > 24 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

Power Flex Dynamic White 120 IP67

View Drawing

Power Flex Dynamic White 120 IP67

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

View product

Power Consumption	4.8 \| 9.6 \| 14.4 \| 19.2 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.17 mm
Max Power Length	8000 mm

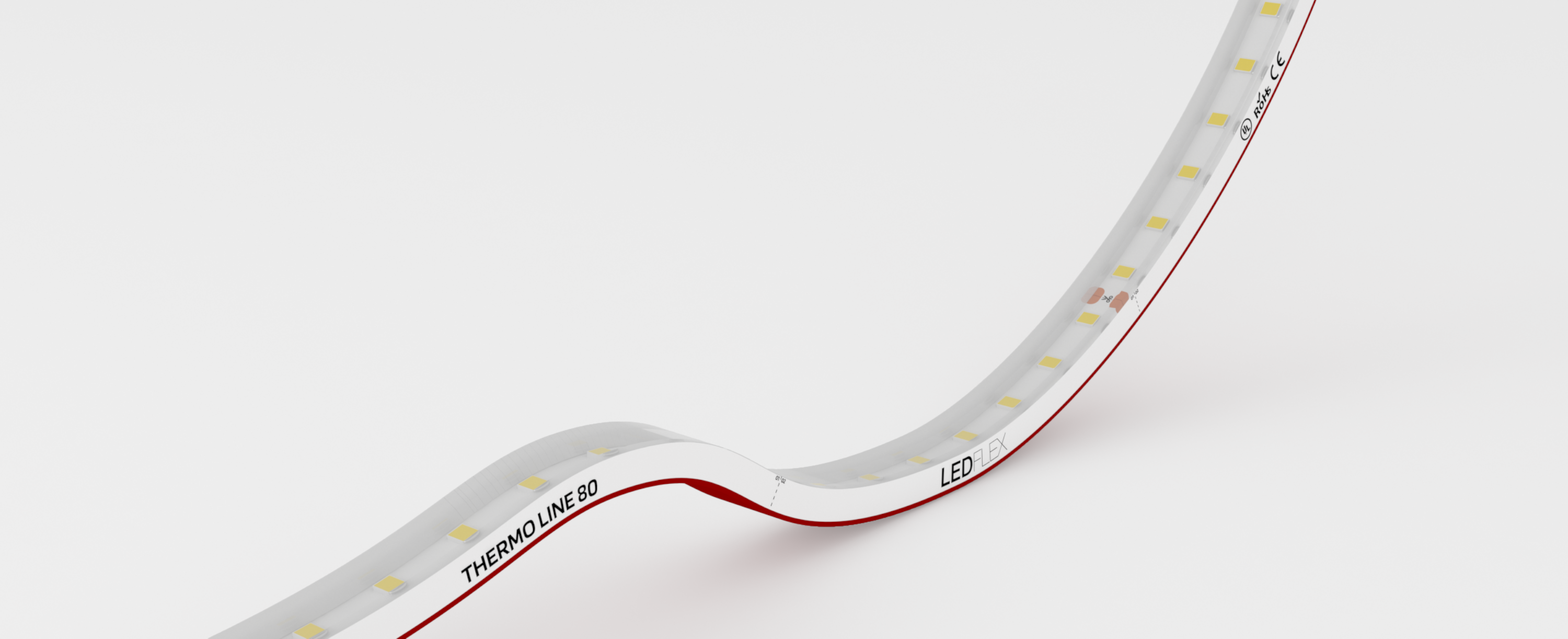

Thermo Line 80 IP67

View Drawing

Thermo Line 80 IP67

Power Consumption	2.4 \| 4.8 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	10000 mm

View product

Power Consumption	2.4 \| 4.8 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	10000 mm

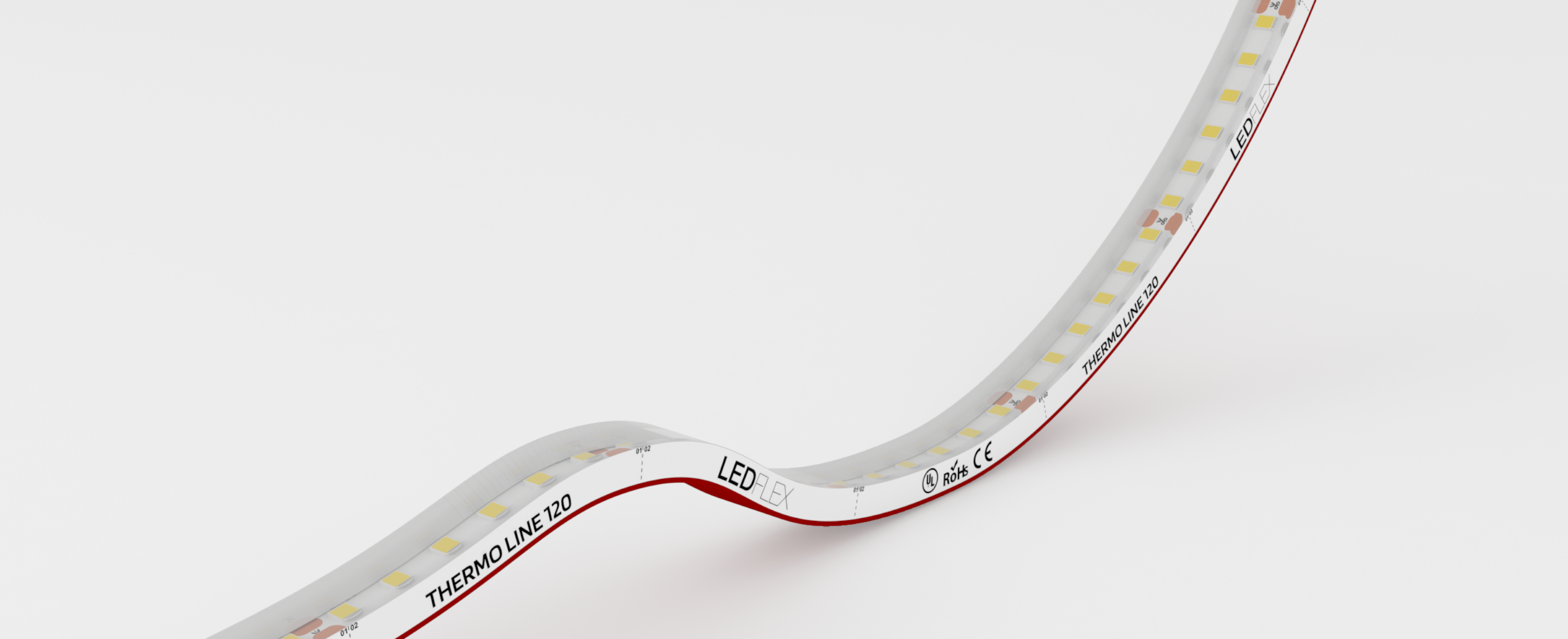

Thermo Line 120 IP67

View Drawing

Thermo Line 120 IP67

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	16000 mm

View product

Power Consumption	2.4 \| 4.8 \| 9.6 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	16000 mm

Dynamic Flex Solo Pixel 30 IP20

View Drawing

Dynamic Flex Solo Pixel 30 IP20

Power Consumption	6 \| 7 W/m
Cutting Intervals	33.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	33.33 mm
Max Power Length	4000 mm
Pixels	30 PX/m

View product

Power Consumption	6 \| 7 W/m
Cutting Intervals	33.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	33.33 mm
Max Power Length	4000 mm
Pixels	30 PX/m

Dynamic Flex Solo Pixel 30 IP65

View Drawing

Dynamic Flex Solo Pixel 30 IP65

Power Consumption	6 \| 7 W/m
Cutting Intervals	33.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	33.33 mm
Max Power Length	4000 mm
Pixels	30 PX/m

View product

Power Consumption	6 \| 7 W/m
Cutting Intervals	33.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	33.33 mm
Max Power Length	4000 mm
Pixels	30 PX/m

Dynamic Flex Solo Pixel 60 IP20

View Drawing

Dynamic Flex Solo Pixel 60 IP20

Power Consumption	12 \| 13.5 W/m
Cutting Intervals	16.66 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	16.66 mm
Max Power Length	3000 mm
Pixels	60 PX/m

View product

Power Consumption	12 \| 13.5 W/m
Cutting Intervals	16.66 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	16.66 mm
Max Power Length	3000 mm
Pixels	60 PX/m

Dynamic Flex Solo Pixel 60 IP65

View Drawing

Dynamic Flex Solo Pixel 60 IP65

Power Consumption	12 \| 13.5 W/m
Cutting Intervals	16.66 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	16.66 mm
Max Power Length	3000 mm
Pixels	60 PX/m

View product

Power Consumption	12 \| 13.5 W/m
Cutting Intervals	16.66 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	16.66 mm
Max Power Length	3000 mm
Pixels	60 PX/m

Dynamic Flex Solo Pixel 90 IP20

View Drawing

Dynamic Flex Solo Pixel 90 IP20

Power Consumption	18 \| 20 W/m
Cutting Intervals	11.11 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	11.11 mm
Max Power Length	2500 mm
Pixels	90 PX/m

View product

Power Consumption	18 \| 20 W/m
Cutting Intervals	11.11 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	11.11 mm
Max Power Length	2500 mm
Pixels	90 PX/m

Dynamic Flex Solo Pixel 90 IP65

View Drawing

Dynamic Flex Solo Pixel 90 IP65

Power Consumption	18 \| 20 W/m
Cutting Intervals	11.11 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	11.11 mm
Max Power Length	2500 mm
Pixels	90 PX/m

View product

Power Consumption	18 \| 20 W/m
Cutting Intervals	11.11 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	11.11 mm
Max Power Length	2500 mm
Pixels	90 PX/m

Dynamic Flex Solo Pixel 120 IP20

View Drawing

Dynamic Flex Solo Pixel 120 IP20

Power Consumption	24 \| 26 W/m
Cutting Intervals	8.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	2000 mm
Pixels	120 PX/m

View product

Power Consumption	24 \| 26 W/m
Cutting Intervals	8.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	2000 mm
Pixels	120 PX/m

Dynamic Flex Solo Pixel 120 IP65

View Drawing

Dynamic Flex Solo Pixel 120 IP65

Power Consumption	24 \| 26 W/m
Cutting Intervals	8.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	2000 mm
Pixels	120 PX/m

View product

Power Consumption	24 \| 26 W/m
Cutting Intervals	8.33 mm
Voltage	5 V DC
Beam Angle	120 °
LED Pitch	8.33 mm
Max Power Length	2000 mm
Pixels	120 PX/m

Dynamic Flex Pixel 84 IP20

View Drawing

Dynamic Flex Pixel 84 IP20

Power Consumption	17 \| 23 W/m
Cutting Intervals	83.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	11.9 mm
Max Power Length	4000 mm
Pixels	12 PX/m

View product

Power Consumption	17 \| 23 W/m
Cutting Intervals	83.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	11.9 mm
Max Power Length	4000 mm
Pixels	12 PX/m

Dynamic Flex Pixel 84 IP65

View Drawing

Dynamic Flex Pixel 84 IP65

Power Consumption	17 \| 23 W/m
Cutting Intervals	83.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	11.9 mm
Max Power Length	4000 mm
Pixels	12 PX/m

View product

Power Consumption	17 \| 23 W/m
Cutting Intervals	83.3 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	11.9 mm
Max Power Length	4000 mm
Pixels	12 PX/m

Dynamic Flex Pixel 72 IP20

View Drawing

Dynamic Flex Pixel 72 IP20

Power Consumption	17 \| 23 W/m
Cutting Intervals	41.67 mm
Voltage	12 V DC
Beam Angle	120 °
LED Pitch	13.89 mm
Max Power Length	3000 mm
Pixels	24 PX/m

View product

Power Consumption	17 \| 23 W/m
Cutting Intervals	41.67 mm
Voltage	12 V DC
Beam Angle	120 °
LED Pitch	13.89 mm
Max Power Length	3000 mm
Pixels	24 PX/m

Dynamic Flex Pixel 72 IP65

View Drawing

Dynamic Flex Pixel 72 IP65

Power Consumption	17 \| 23 W/m
Cutting Intervals	41.67 mm
Voltage	12 V DC
Beam Angle	120 °
LED Pitch	13.89 mm
Max Power Length	3000 mm
Pixels	24 PX/m

View product

Power Consumption	17 \| 23 W/m
Cutting Intervals	41.67 mm
Voltage	12 V DC
Beam Angle	120 °
LED Pitch	13.89 mm
Max Power Length	3000 mm
Pixels	24 PX/m

Dynamic Flex 80 IP20

View Drawing

Dynamic Flex 80 IP20

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 80 IP54

View Drawing

Dynamic Flex 80 IP54

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 80 IP67

View Drawing

Dynamic Flex 80 IP67

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	100 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	12.5 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 96 IP20

View Drawing

Dynamic Flex 96 IP20

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 96 IP54

View Drawing

Dynamic Flex 96 IP54

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 96 IP67

View Drawing

Dynamic Flex 96 IP67

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	62.5 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	10.45 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 120 IP20

View Drawing

Dynamic Flex 120 IP20

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 120 IP54

View Drawing

Dynamic Flex 120 IP54

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 120 IP67

View Drawing

Dynamic Flex 120 IP67

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	8.32 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 160 IP20

View Drawing

Dynamic Flex 160 IP20

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 160 IP54

View Drawing

Dynamic Flex 160 IP54

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 160 IP67

View Drawing

Dynamic Flex 160 IP67

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	15 W/m
Cutting Intervals	50 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	6.25 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 240 IP20

View Drawing

Dynamic Flex 240 IP20

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 240 IP54

View Drawing

Dynamic Flex 240 IP54

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

Dynamic Flex 240 IP67

View Drawing

Dynamic Flex 240 IP67

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

View product

Power Consumption	23 W/m
Cutting Intervals	33.33 mm
Voltage	24 V DC
Beam Angle	120 °
LED Pitch	4.16 mm
Max Power Length	5000 mm
Pixels	-

Flex To Wire Connector 8mm

View Drawing

Flex To Wire Connector 8mm

Max Flex Width	8 mm
IP rating	20+
Material	Polycarbonate + Copper
Pin Quantity	2

View product

Max Flex Width	8 mm
IP rating	20+
Material	Polycarbonate + Copper
Pin Quantity	2

Flex To Wire Connector 10mm

View Drawing

Flex To Wire Connector 10mm

Max Flex Width	10 mm
IP rating	20+
Material	Polycarbonate + Copper
Pin Quantity	2

View product

Max Flex Width	10 mm
IP rating	20+
Material	Polycarbonate + Copper
Pin Quantity	2

Flex Tool Kit

View Drawing

Flex Tool Kit

Contents	Construction Pencil Set
	Nano Flex Roller Tool
	Flex Roller Tool

View product

Contents	Construction Pencil Set
	Nano Flex Roller Tool
	Flex Roller Tool

Pro Profile 0509 Grey

View Drawing

Pro Profile 0509 Grey

Dimensions	16 mm x 16 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	16 mm x 16 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 0609 Grey

View Drawing

Pro Profile 0609 Grey

Dimensions	16 mm x 16 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	16 mm x 16 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0709 Grey

View Drawing

Pro Profile 0709 Grey

Dimensions	18.4 mm x 18.4 mm
Max Flex Width	14.1 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	18.4 mm x 18.4 mm
Max Flex Width	14.1 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0709 Black

View Drawing

Pro Profile 0709 Black

Dimensions	18.4 mm x 18.4 mm
Max Flex Width	14.1 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	18.4 mm x 18.4 mm
Max Flex Width	14.1 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 1509 Grey

View Drawing

Pro Profile 1509 Grey

Dimensions	30 mm x 30 mm
Max Flex Width	20.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	30 mm x 30 mm
Max Flex Width	20.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1609 Grey

View Drawing

Pro Profile 1609 Grey

Dimensions	30 mm x 30 mm
Max Flex Width	20.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	30 mm x 30 mm
Max Flex Width	20.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1169 Grey

View Drawing

Pro Profile 1169 Grey

Dimensions	7.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	7.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1169 Black

View Drawing

Pro Profile 1169 Black

Dimensions	7.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	7.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 1179 Grey

View Drawing

Pro Profile 1179 Grey

Dimensions	12.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1179 Black

View Drawing

Pro Profile 1179 Black

Dimensions	12.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

View product

Dimensions	12.8 mm x 12 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

Pro Profile 3509 Grey

View Drawing

Pro Profile 3509 Grey

Dimensions	10 mm x 13.1 mm
Max Flex Width	6 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	10 mm x 13.1 mm
Max Flex Width	6 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 7309 Grey

View Drawing

Pro Profile 7309 Grey

Dimensions	7.8 mm x 9 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	7.8 mm x 9 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 7309 Black

View Drawing

Pro Profile 7309 Black

Dimensions	7.8 mm x 9 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	7.8 mm x 9 mm
Max Flex Width	5.5 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 8809 Grey

View Drawing

Pro Profile 8809 Grey

Dimensions	8 mm x 6.6 mm
Max Flex Width	4.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	8 mm x 6.6 mm
Max Flex Width	4.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 8810 Grey

View Drawing

Pro Profile 8810 Grey

Dimensions	8 mm x 8 mm
Max Flex Width	4.35 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	8 mm x 8 mm
Max Flex Width	4.35 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1359 Grey

View Drawing

Pro Profile 1359 Grey

Dimensions	12 mm x 13 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12 mm x 13 mm
Max Flex Width	5.5 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0109 Grey

View Drawing

Pro Profile 0109 Grey

Dimensions	23.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	23.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0109 Black

View Drawing

Pro Profile 0109 Black

Dimensions	23.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	23.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 0309 Grey

View Drawing

Pro Profile 0309 Grey

Dimensions	23.2 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	23.2 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 0309 Black

View Drawing

Pro Profile 0309 Black

Dimensions	23.2 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	180 LED/m

View product

Dimensions	23.2 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	180 LED/m

Pro Profile 1019 Grey

View Drawing

Pro Profile 1019 Grey

Dimensions	29.5 mm x 13.4 mm
Max Flex Width	8.8 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	29.5 mm x 13.4 mm
Max Flex Width	8.8 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1059 Grey

View Drawing

Pro Profile 1059 Grey

Dimensions	35 mm x 25 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	35 mm x 25 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1309 Grey

View Drawing

Pro Profile 1309 Grey

Dimensions	30.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	30.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1309 Black

View Drawing

Pro Profile 1309 Black

Dimensions	30.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	30.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 1709 Grey

View Drawing

Pro Profile 1709 Grey

Dimensions	50 mm x 35 mm
Max Flex Width	24 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	50 mm x 35 mm
Max Flex Width	24 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1709 Black

View Drawing

Pro Profile 1709 Black

Dimensions	50 mm x 35 mm
Max Flex Width	24 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

View product

Dimensions	50 mm x 35 mm
Max Flex Width	24 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

Pro Profile 3109 Grey

View Drawing

Pro Profile 3109 Grey

Dimensions	36 mm x 28 mm
Max Flex Width	18.6 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	36 mm x 28 mm
Max Flex Width	18.6 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 3109 Black

View Drawing

Pro Profile 3109 Black

Dimensions	36 mm x 28 mm
Max Flex Width	18.6 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

View product

Dimensions	36 mm x 28 mm
Max Flex Width	18.6 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

Pro Profile 4509 Grey

View Drawing

Pro Profile 4509 Grey

Dimensions	65 mm x 35 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	65 mm x 35 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 4709 Grey

View Drawing

Pro Profile 4709 Grey

Dimensions	90 mm x 35 mm
Max Flex Width	64 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	90 mm x 35 mm
Max Flex Width	64 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Sk Profile Flexible Grey

View Drawing

Sk Profile Flexible Grey

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Sk Straight Grey

View Drawing

Sk Straight Grey

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile T40 Grey

View Drawing

Pro Profile T40 Grey

Dimensions	40.2 mm x 40.2 mm
Max Flex Width	18.1 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	40.2 mm x 40.2 mm
Max Flex Width	18.1 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile T60 Grey

View Drawing

Pro Profile T60 Grey

Dimensions	60 mm x 60 mm
Max Flex Width	18.5 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	60 mm x 60 mm
Max Flex Width	18.5 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 0809 Grey

View Drawing

Pro Profile 0809 Grey

Dimensions	20.8 mm x 20.8 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	20.8 mm x 20.8 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 6609 Grey

View Drawing

Pro Profile 6609 Grey

Dimensions	45 mm x 42 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	45 mm x 42 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1069 Grey

View Drawing

Pro Profile 1069 Grey

Dimensions	25 mm x 32.4 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	25 mm x 32.4 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 4409d Grey

View Drawing

Pro Profile 4409d Grey

Dimensions	26 mm x 33 mm
Max Flex Width	22.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	26 mm x 33 mm
Max Flex Width	22.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 4609d Grey

View Drawing

Pro Profile 4609d Grey

Dimensions	50 mm x 50 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	50 mm x 50 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 6509 Grey

View Drawing

Pro Profile 6509 Grey

Dimensions	45 mm x 42 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	45 mm x 42 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 6709 Grey

View Drawing

Pro Profile 6709 Grey

Dimensions	75 mm x 40 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	75 mm x 40 mm
Max Flex Width	41.4 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 7809 Grey

View Drawing

Pro Profile 7809 Grey

Dimensions	101 mm x 67.8 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	101 mm x 67.8 mm
Max Flex Width	10 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 2309 Grey

View Drawing

Pro Profile 2309 Grey

Dimensions	14 mm x 68 mm
Max Flex Width	10.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	14 mm x 68 mm
Max Flex Width	10.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1189 Grey

View Drawing

Pro Profile 1189 Grey

Dimensions	45.7 mm x 50.1 mm
Max Flex Width	19.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	45.7 mm x 50.1 mm
Max Flex Width	19.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 3409 Grey

View Drawing

Pro Profile 3409 Grey

Dimensions	21.3 mm x 26.1 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	21.3 mm x 26.1 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 5009 Grey

View Drawing

Pro Profile 5009 Grey

Dimensions	17.7 mm x 48.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	17.7 mm x 48.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 4909 Grey

View Drawing

Pro Profile 4909 Grey

Dimensions	42.3 mm x 85 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	42.3 mm x 85 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 6209 Grey

View Drawing

Pro Profile 6209 Grey

Dimensions	17.7 mm x 43.5 mm
Max Flex Width	12.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	17.7 mm x 43.5 mm
Max Flex Width	12.3 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 9109 White

View Drawing

Pro Profile 9109 White

Dimensions	84 mm x 34 mm
Max Flex Width	12.3 mm
Colour	WHITE
Pitch For Diffusion	240 LED/m

View product

Dimensions	84 mm x 34 mm
Max Flex Width	12.3 mm
Colour	WHITE
Pitch For Diffusion	240 LED/m

Pro Profile 1419 White

View Drawing

Pro Profile 1419 White

Dimensions	24 mm x 21.1 mm
Max Flex Width	12 mm
Colour	WHITE
Pitch For Diffusion	240 LED/m

View product

Dimensions	24 mm x 21.1 mm
Max Flex Width	12 mm
Colour	WHITE
Pitch For Diffusion	240 LED/m

Pro Profile 1149 Grey

View Drawing

Pro Profile 1149 Grey

Dimensions	18 mm x 5.6 mm
Max Flex Width	12.8 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	18 mm x 5.6 mm
Max Flex Width	12.8 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Sk Profile Flexible Grey

View Drawing

Sk Profile Flexible Grey

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Sk Profile Straight Grey

View Drawing

Sk Profile Straight Grey

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	12 mm x 18 mm
Max Flex Width	9 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0209 Grey

View Drawing

Pro Profile 0209 Grey

Dimensions	17.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	17.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 0209 Black

View Drawing

Pro Profile 0209 Black

Dimensions	17.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	17.1 mm x 8.5 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 0409 Grey

View Drawing

Pro Profile 0409 Grey

Dimensions	17.1 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	17.1 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 0409 Black

View Drawing

Pro Profile 0409 Black

Dimensions	17.1 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	180 LED/m

View product

Dimensions	17.1 mm x 15.3 mm
Max Flex Width	12.2 mm
Colour	BLACK
Pitch For Diffusion	180 LED/m

Pro Profile 1009 Grey

View Drawing

Pro Profile 1009 Grey

Dimensions	19.7 mm x 20.2 mm
Max Flex Width	16.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	19.7 mm x 20.2 mm
Max Flex Width	16.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 1109 Grey

View Drawing

Pro Profile 1109 Grey

Dimensions	19.7 mm x 20 mm
Max Flex Width	16.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

View product

Dimensions	19.7 mm x 20 mm
Max Flex Width	16.9 mm
Colour	GREY
Pitch For Diffusion	180 LED/m

Pro Profile 1049 Grey

View Drawing

Pro Profile 1049 Grey

Dimensions	25 mm x 25 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	25 mm x 25 mm
Max Flex Width	13.2 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1099 Grey

View Drawing

Pro Profile 1099 Grey

Dimensions	25.4 mm x 16 mm
Max Flex Width	20.1 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	25.4 mm x 16 mm
Max Flex Width	20.1 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1409 Grey

View Drawing

Pro Profile 1409 Grey

Dimensions	23.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	23.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 1409 Black

View Drawing

Pro Profile 1409 Black

Dimensions	23.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

View product

Dimensions	23.5 mm x 10.9 mm
Max Flex Width	20 mm
Colour	BLACK
Pitch For Diffusion	240 LED/m

Pro Profile 1809 Grey

View Drawing

Pro Profile 1809 Grey

Dimensions	35 mm x 35 mm
Max Flex Width	24 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	35 mm x 35 mm
Max Flex Width	24 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 1809 Black

View Drawing

Pro Profile 1809 Black

Dimensions	35 mm x 35 mm
Max Flex Width	24 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

View product

Dimensions	35 mm x 35 mm
Max Flex Width	24 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

Pro Profile 3209 Grey

View Drawing

Pro Profile 3209 Grey

Dimensions	23.4 mm x 28 mm
Max Flex Width	18.6 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	23.4 mm x 28 mm
Max Flex Width	18.6 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 3209 Black

View Drawing

Pro Profile 3209 Black

Dimensions	23.4 mm x 28 mm
Max Flex Width	18.6 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

View product

Dimensions	23.4 mm x 28 mm
Max Flex Width	18.6 mm
Colour	BLACK
Pitch For Diffusion	120 LED/m

Pro Profile 4409 Grey

View Drawing

Pro Profile 4409 Grey

Dimensions	23.5 mm x 15 mm
Max Flex Width	20.4 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

View product

Dimensions	23.5 mm x 15 mm
Max Flex Width	20.4 mm
Colour	GREY
Pitch For Diffusion	240 LED/m

Pro Profile 4609 Grey

View Drawing

Pro Profile 4609 Grey

Dimensions	50 mm x 35 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	50 mm x 35 mm
Max Flex Width	39 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Pro Profile 4809 Grey

View Drawing

Pro Profile 4809 Grey

Dimensions	75 mm x 35 mm
Max Flex Width	64 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

View product

Dimensions	75 mm x 35 mm
Max Flex Width	64 mm
Colour	GREY
Pitch For Diffusion	120 LED/m

Featured Products

Rigid OpticoNew

Delta In-Ground New

Range Application

Nano Flex

Eco Flex

Lumen Line

Multi Line

Power Flex

Thermo Line

Dynamic Flex

Flex Profiles

Flex Connectors

Flex Tools

Range Application

Ultimo Neon

Aqua Neon

ATEX Neon

Thermo Neon

Optico Neon

Neon Profile

Neon Clips

Neon Brackets

Neon Connectors

Neon Tools

Range Application

Delta In-Ground

Range Application

Flexi Panel White

Flexi Panel Dual Colour

Flexi Panel Specialist

Range Application

Rigid Grazer Nano

Rigid Grazer Maxi

Range Application

Shelf

Pull Handles

Skirt

Sensors

Drive

Range Application

Rigid Optico 40

Rigid Optico Brackets

Rigid Optico Louvres

Range Application

Rigid Line Opal

Rigid Line Prism

Rigid Line Concave

Rigid Line Hexagonal

Rigid Line Louvre

Range Application

PSU & Drivers

Cables

Product Archive

Flexi Range

Nano Flex 160 IP20

Nano Flex 160 IP20

Nano Flex 160 IP54

Nano Flex 160 IP54

Nano Flex 240 IP20

Nano Flex 240 IP20

Nano Flex 240 IP54

Nano Flex 240 IP54

Nano Flex Solo 160 IP20

Nano Flex Solo 160 IP20

Nano Flex Solo 160 IP54

Nano Flex Solo 160 IP54

Nano Flex Solo Edge 160 IP20

Nano Flex Solo Edge 160 IP20

Nano Flex Solo Edge 160 IP54

Nano Flex Solo Edge 160 IP54

Nano Line 480 IP20

Nano Line 480 IP20

Nano Flex Dynamic White 160 IP20

Nano Flex Dynamic White 160 IP20

Nano Flex Dynamic White 160 IP54

Nano Flex Dynamic White 160 IP54

Eco Flex 80 IP20

Eco Flex 80 IP20

Eco Flex 80 IP54
