Flexi Panel

The Flexi Panel range consists of ultra-thin, flexible LED light sheets designed for direct adhesion to flat or curved surfaces. These panels offer a variety of lighting options including Single Color, Dynamic White, RGB/W, and Pixel control, enabling customisable illumination, and can be cut to desired shapes, maximising design and application versatility.

Flexi Panel  10 Single Colour
  • Flexi Panel 10 Single Colour

  • View Drawing
    Flexi Panel  10 Single Colour

    Flexi Panel 10 Single Colour

    Power Consumption 10 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 10 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  20 Single Colour
  • Flexi Panel 20 Single Colour

  • View Drawing
    Flexi Panel  20 Single Colour

    Flexi Panel 20 Single Colour

    Power Consumption 20 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 20 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  30 Single Colour
  • Flexi Panel 30 Single Colour

  • View Drawing
    Flexi Panel  30 Single Colour

    Flexi Panel 30 Single Colour

    Power Consumption 30 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 30 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  45 Single Colour
  • Flexi Panel 45 Single Colour

  • View Drawing
    Flexi Panel  45 Single Colour

    Flexi Panel 45 Single Colour

    Power Consumption 45 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 45 W/m
    Cutting Intervals 20 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  20 Dynamic White
  • Flexi Panel 20 Dynamic White

  • View Drawing
    Flexi Panel  20 Dynamic White

    Flexi Panel 20 Dynamic White

    Power Consumption 20 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 20 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm

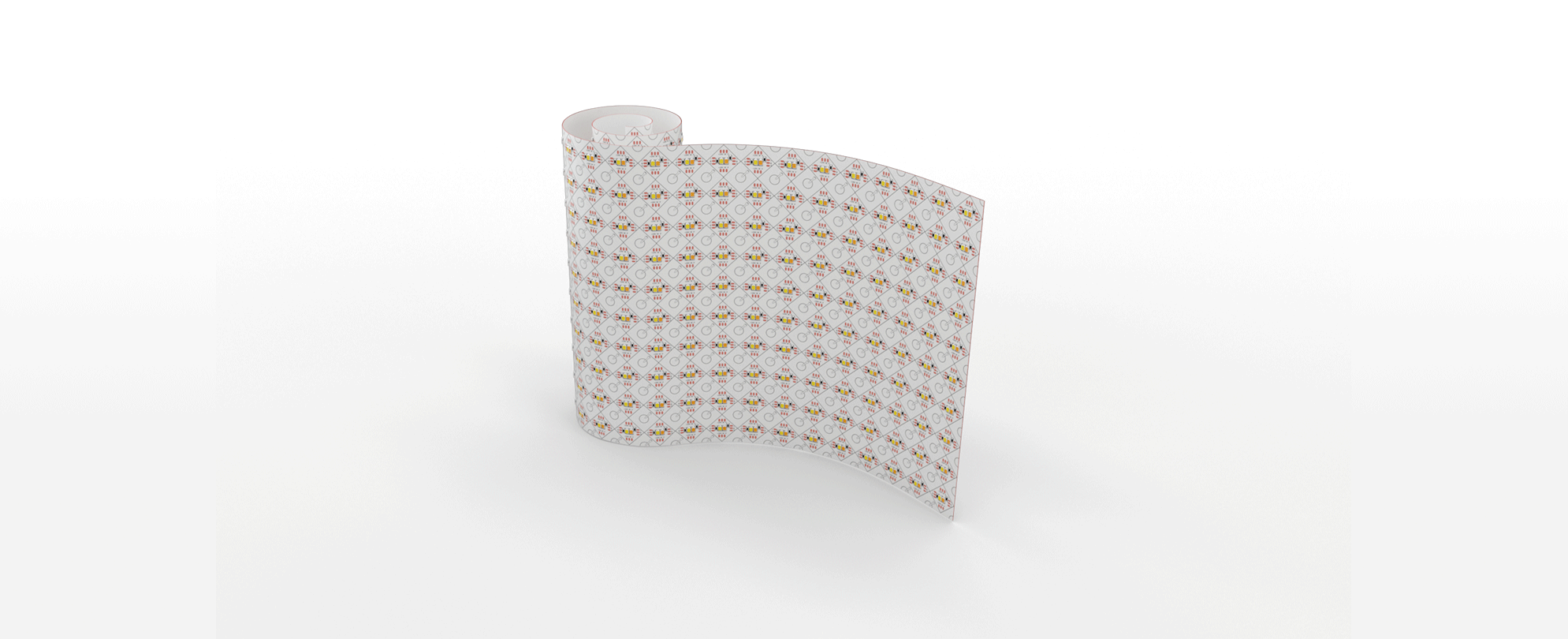

    Flexi Panel  40 Dynamic White
  • Flexi Panel 40 Dynamic White

  • View Drawing
    Flexi Panel  40 Dynamic White

    Flexi Panel 40 Dynamic White

    Power Consumption 40 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 40 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  60 Dynamic White
  • Flexi Panel 60 Dynamic White

  • View Drawing
    Flexi Panel  60 Dynamic White

    Flexi Panel 60 Dynamic White

    Power Consumption 60 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 60 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  90 Dynamic White
  • Flexi Panel 90 Dynamic White

  • View Drawing
    Flexi Panel  90 Dynamic White

    Flexi Panel 90 Dynamic White

    Power Consumption 90 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 90 W/m
    Cutting Intervals 24 x 24 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm

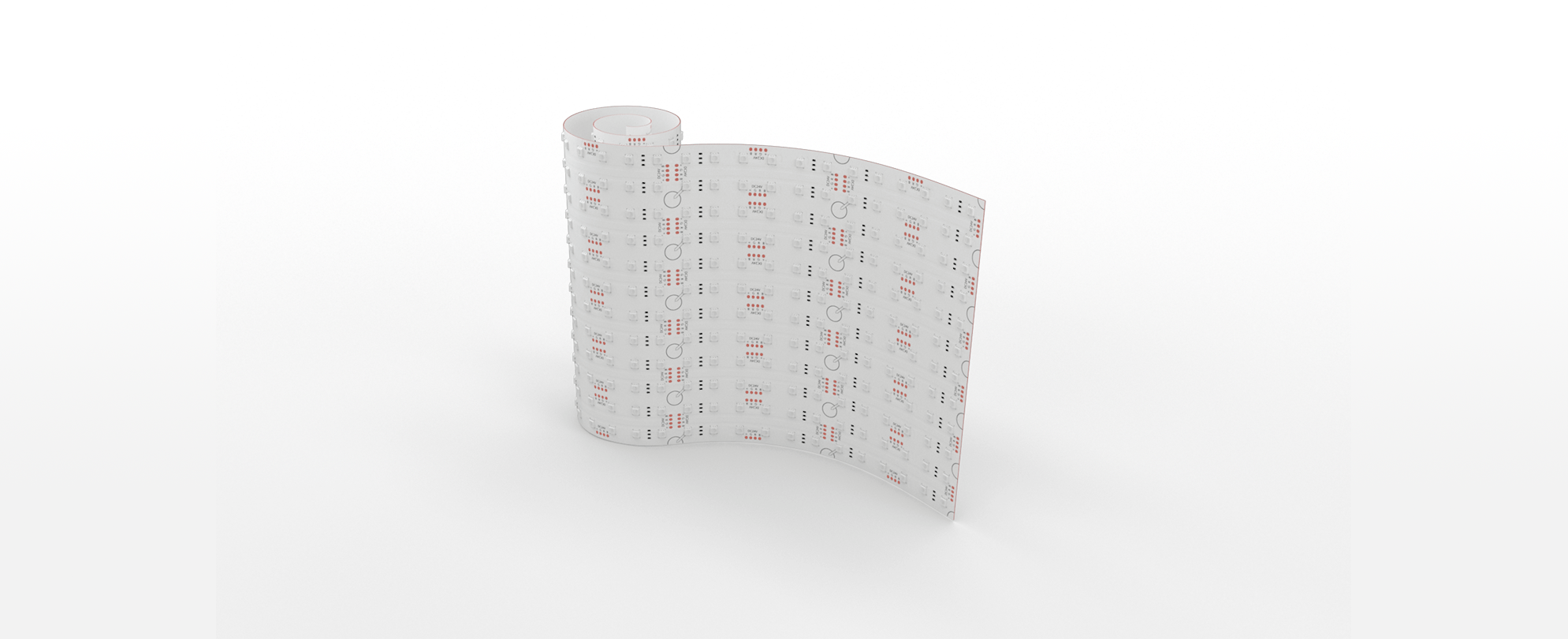

    Flexi Panel  60 RGB
  • Flexi Panel 60 RGB

  • View Drawing
    Flexi Panel  60 RGB

    Flexi Panel 60 RGB

    Power Consumption 60 W/m
    Cutting Intervals 120 x 40 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 60 W/m
    Cutting Intervals 120 x 40 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  80 RGBW
  • Flexi Panel 80 RGBW

  • View Drawing
    Flexi Panel  80 RGBW

    Flexi Panel 80 RGBW

    Power Consumption 80 W/m
    Cutting Intervals 120 x 40 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 80 W/m
    Cutting Intervals 120 x 40 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm

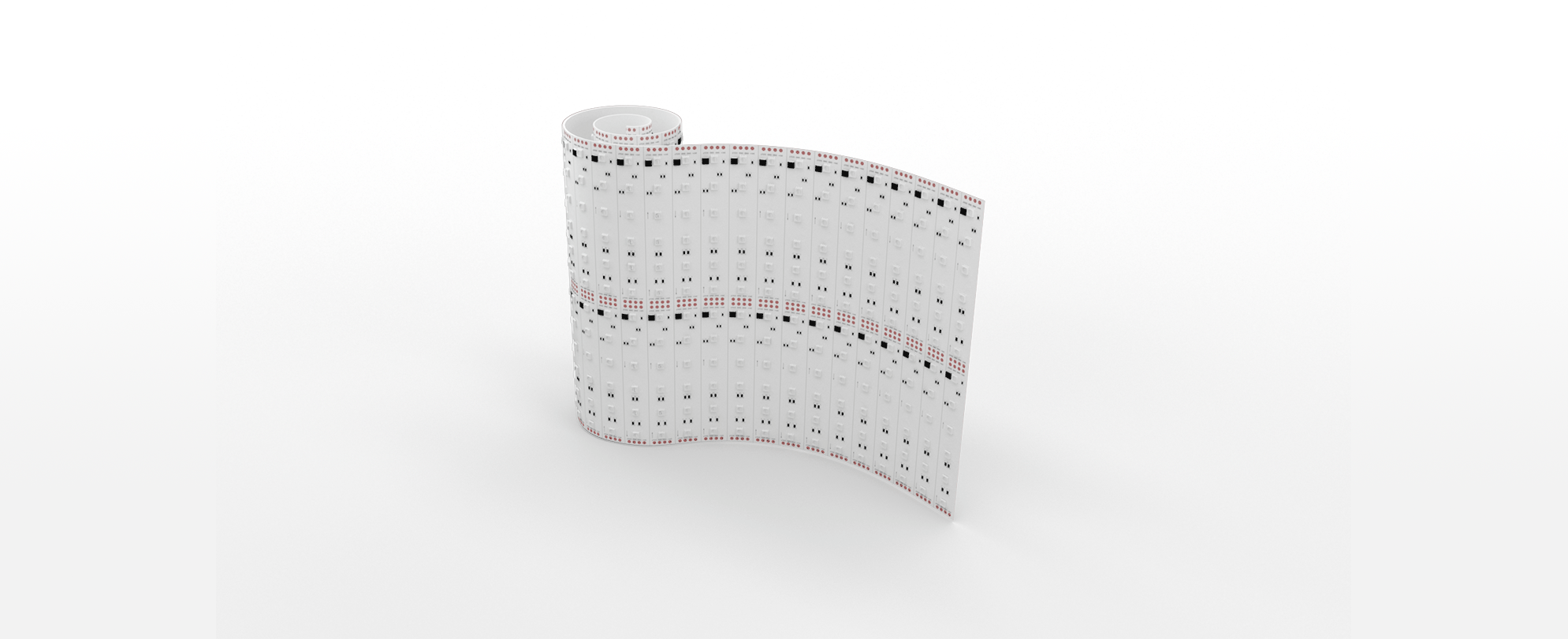

    Flex Panel  60 RGB Pixel
  • Flex Panel 60 RGB Pixel

  • View Drawing
    Flex Panel  60 RGB Pixel

    Flex Panel 60 RGB Pixel

    Power Consumption 60 W/m
    Cutting Intervals 120 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 60 W/m
    Cutting Intervals 120 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    Flexi Panel  80 RGBW Pixel
  • Flexi Panel 80 RGBW Pixel

  • View Drawing
    Flexi Panel  80 RGBW Pixel

    Flexi Panel 80 RGBW Pixel

    Power Consumption 80 W/m
    Cutting Intervals 120 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
    View product
    Power Consumption 80 W/m
    Cutting Intervals 120 x 20 mm
    Voltage 24 V DC
    Beam Angle 120 °
    Bend Radius Min 10 mm
